Section 61 (Hybrid Control System - Component Testing)
>>
Removal And Installation
>>
Inverter With Converter Assembly
>>
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

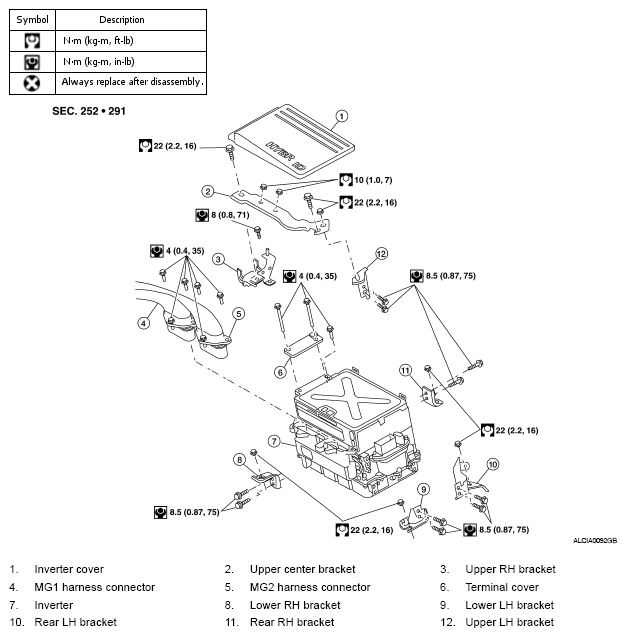

Fig 1: Exploded View Of Inverter With Converter Assembly With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
