Section 59 (Hybrid Control System - Introduction)
>>
Function Diagnosis
>>
Automatic Speed Control Device (ASCD)
>>
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

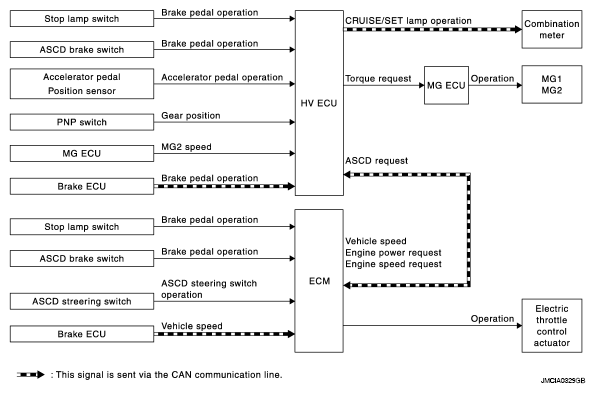

Fig 1: Automatic Speed Control Device (ASCD) - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
