Exploded View

WARNING: This page is about a different car, the 2010 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

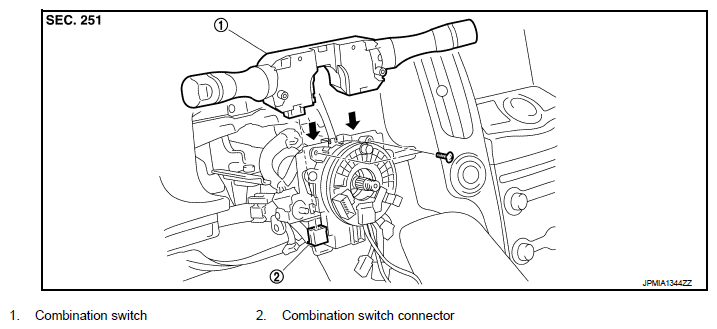

Fig 1: Identifying Combination Switch And Combination Switch Connector
G06575668Courtesy of NISSAN MOTOR CO., U.S.A.
