Exploded View

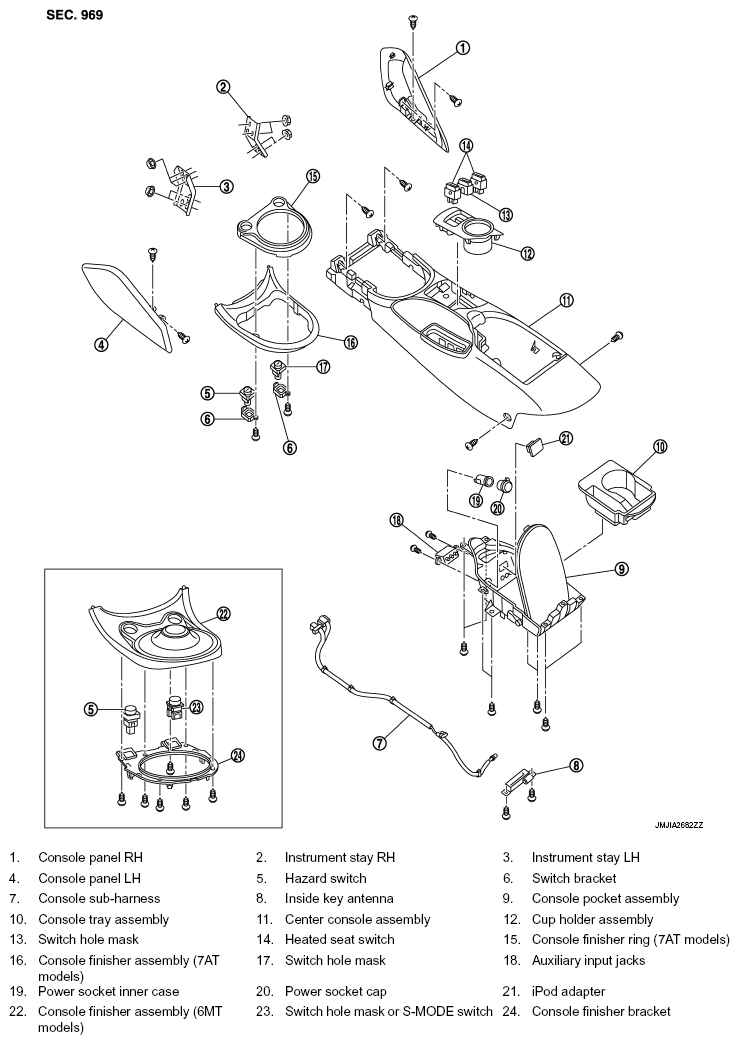

Fig 1: Exploded View Of Center Console Assembly

G06053273

Courtesy of NISSAN MOTOR CO., U.S.A.
