Door Glass
>>
Exploded View
Exploded View

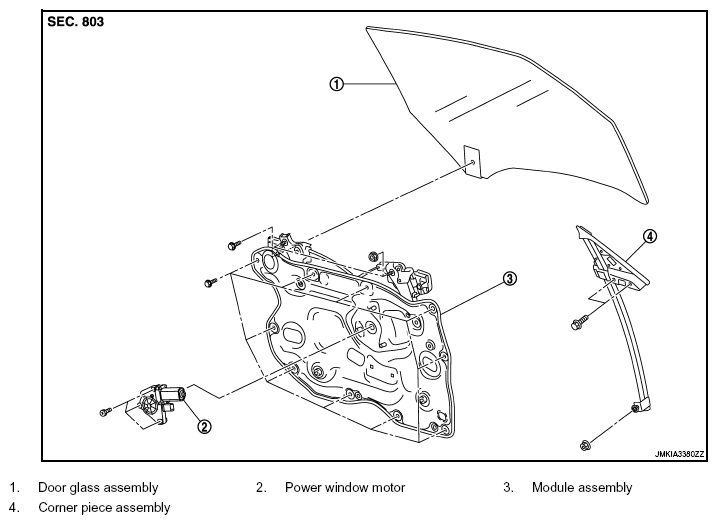

Fig 1: Exploded View Of Door Glass
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
