Removal and Installation: Removal

Disconnect the push-button ignition switch (1) fixing pawl using a remover tool (A), and then remove push-button ignition switch.

CAUTION: Always apply a protective tape (B) on instrument panel for protection.

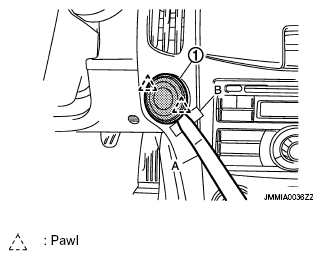

Fig 1: Identifying Push-button Ignition Switch
G06049924Courtesy of NISSAN MOTOR CO., U.S.A.
