Mid System: Notes

WARNING: This page is about a different car, the 2007 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

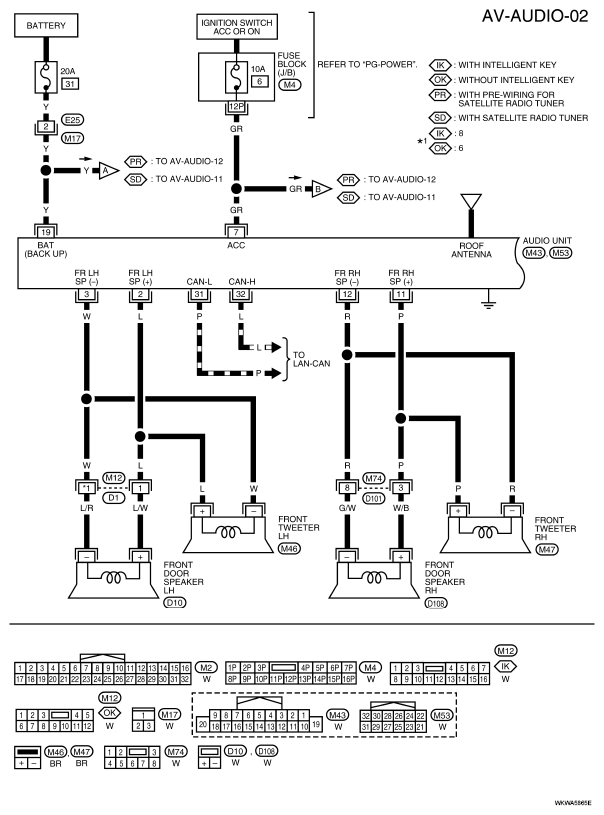

Fig 1: Wiring Diagram (MID System) - AV-AUDIO-02
G04928559

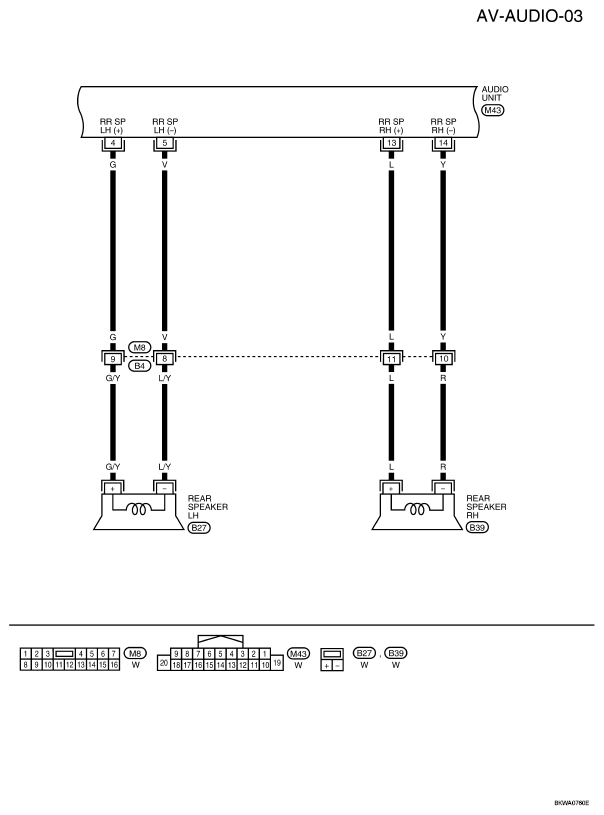

Fig 2: Wiring Diagram - AV-AUDIO-03
G04928560
