Diagnostic Procedure

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
  Refer to "GROUND INSPECTION ".

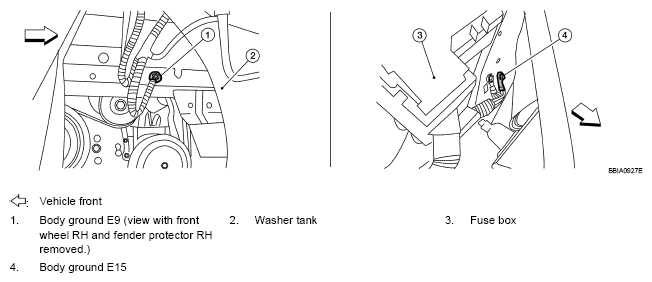

  Fig 1: Identifying Body Ground Connections
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK: GO TO 2.

NG: Repair or replace ground connections.
CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect air fuel ratio (A/F) sensor 1 harness connector.
  - Air fuel ratio (A/F) sensor 1 (Bank 1) harness connector (1)
  - Air fuel ratio (A/F) sensor 1 (Bank 1) (2)
  - Air fuel ratio (A/F) sensor 1 (Bank 2) (3)
  - Air fuel ratio (A/F) sensor 1(Bank 2) harness connector (4)
2. Turn ignition switch ON.

  Fig 2: Identifying Air Fuel Ratio Sensor 1 Harness Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between A/F sensor 1 terminal 4 and ground with CONSULT-III or tester.
  Voltage: Battery voltage
OK or NG

OK: GO TO 4.

NG: GO TO 3.

Fig 3: Checking Voltage Between A/F Sensor 1 Terminal 4 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E3, F2 (Bank 1)
- Harness connectors E17, F10 (Bank 2)
- Fuse block (J/B) connector E39 (Bank 2)
- 10A fuse (Bank 1)
- 15A fuse (Bank 2)
- Harness for open or short between A/F sensor 1 and fuse
: Repair or replace harness or connectors.

CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

Turn ignition switch OFF.
Disconnect ECM harness connector.

Check harness continuity between the following terminals. Refer to WIRING DIAGRAM .

TERMINALS CONTINUITY CHART

Bank	A/F sensor 1 terminal	ECM terminal
1	1	45
1	2	49
2	1	53
2	2	57

Continuity should exist.

Check harness continuity between the following terminals.

Refer to WIRING DIAGRAM .

TERMINALS CONTINUITY CHART

Bank 1		Bank 2
A/F sensor terminal	ECM terminal	A/F sensor terminal	ECM terminal
1	45	1	53
2	49	2	57

Continuity should not exist.

Also check harness for short to power.

OK or NG

OK: GO TO 5.

NG: Repair open circuit or short to ground or short to power in harness or connectors.

CHECK INTERMITTENT INCIDENT
Perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

OK or NG

OK: GO TO 6.

NG: Repair or replace.
REPLACE AIR FUEL RATIO (A/F) SENSOR 1
Replace malfunctioning air fuel ratio (A/F) sensor 1.
CAUTION:
- Discard any A/F sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
- Before installing new A/F sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
: INSPECTION END
