Front Power Window RH Circuit Inspection (Power Window and Door Lock/Unlock Switch RH Operation With Automatic Close)

1. Turn ignition switch OFF.
2. Disconnect front power window motor RH.
3. Turn ignition switch ON.
4. Check voltage between front power window motor RH connector and ground.
   CONNECTOR TERMINAL VOLTAGE SPECIFICATION



   Connector	Terminals		Condition	Voltage (V) (Approx.)
   	(+)	(-)
   D105	1	Ground	UP	Battery voltage
   			DOWN	0
   	2		UP	0
   			DOWN	Battery voltage

   Fig 1: Checking Voltage Between Front Power Window Motor RH Connector And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace front power window motor RH. Refer to REMOVAL AND INSTALLATION

NG: GO TO 2.

1. Turn ignition switch ON.
2. Check voltage between power window and door lock/unlock switch RH connector D104 and ground.

   8 - Ground : Battery voltage

   Fig 2: Checking Voltage Between Power Window And Door Lock/Unlock Switch RH Connector D104 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 4.

NG: GO TO 3.

1. Turn ignition switch OFF.
2. Disconnect BCM and power window and door lock/unlock switch RH.
3. Check continuity between BCM connector (A) and power window and door lock/unlock switch connector (B).
   CONNECTOR TERMINAL CONTINUITY SPECIFICATION



   A		B		Continuity
   Connector	Terminal	Connector	Terminal
   M20	68	D104	8	Yes

4. Check continuity between BCM connector (A) and ground.
   CONNECTOR TERMINAL CONTINUITY SPECIFICATION



   A		Ground	Continuity
   Connector	Terminal
   M20	68		No

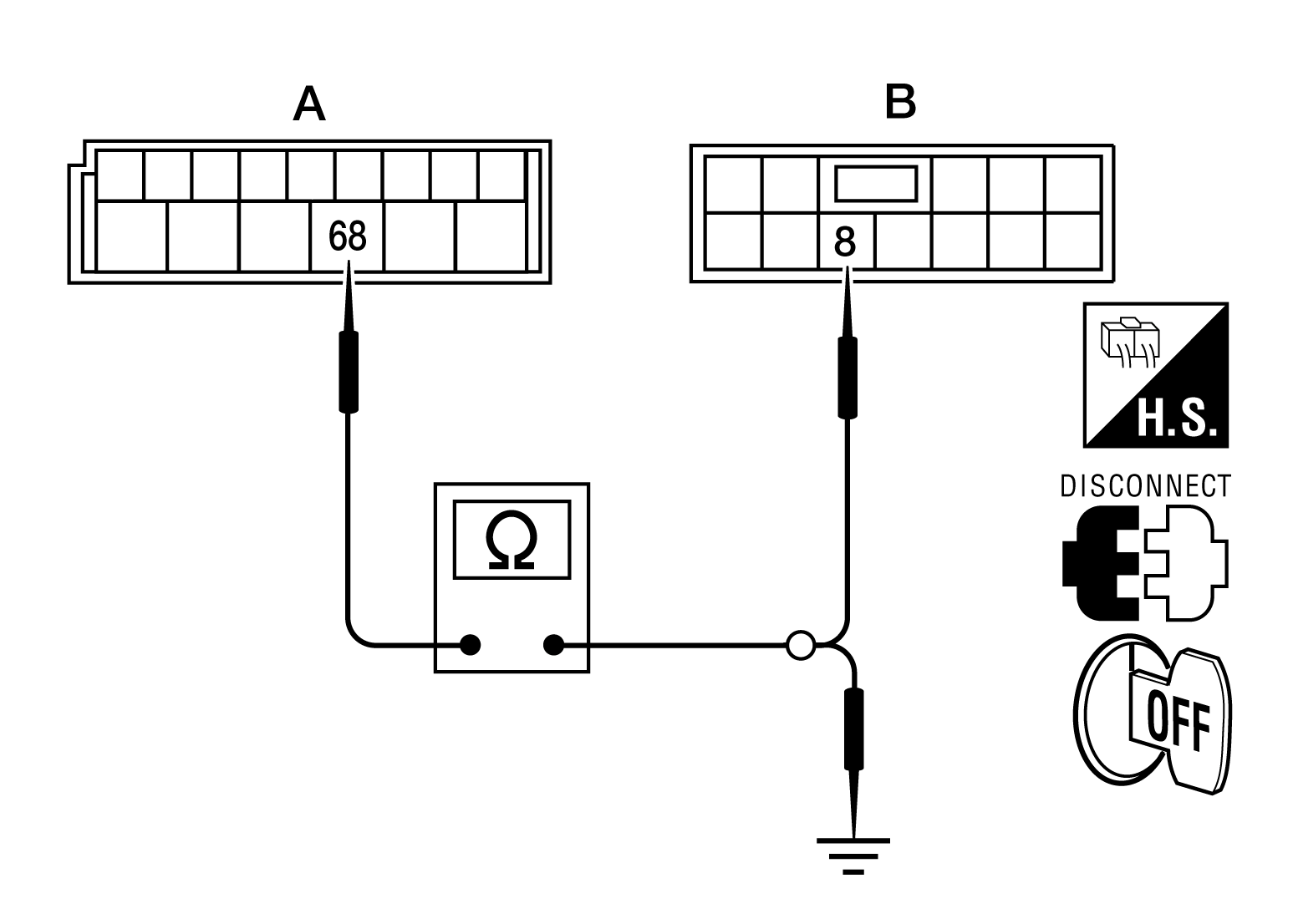

Fig 3: Checking Continuity Between BCM And Power Window And Door Lock/Unlock Switch RH
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

Check the condition of the harness and the connector.

Repair or replace harness.

1. Turn ignition switch ON.
2. Check voltage between power window and door lock/unlock switch RH connector and ground.
   CONNECTOR TERMINAL VOLTAGE SPECIFICATION



   Connector	Terminals		Condition	Voltage (V) (Approx.)
   	(+)	(-)
   D104	7	Ground	UP	Battery voltage
   			DOWN	0
   	6		UP	0
   			DOWN	Battery voltage

Fig 4: Checking Voltage Between Power Window And Door Lock/Unlock Switch RH Connector And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 5.

NG: GO TO 6.

1. Turn ignition switch OFF.
2. Disconnect front power window motor RH and power window and door lock/unlock switch RH.
3. Check continuity between power window and door lock/unlock switch RH connector D104 (A) terminals 6, 7 and front power window motor RH connector D105 (B) terminals 1, 2.

   7 - 1 : Continuity should exist.

   6 - 2 : Continuity should exist.

4. Check continuity between power window and door lock/unlock switch RH connector D104 (A) terminals 6, 7 and ground.

   6 - Ground : Continuity should not exist.

   7 - Ground : Continuity should not exist.

Fig 5: Checking Continuity Between Power Window And Door Lock/Unlock Switch RH Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace front power window motor RH. Refer to REMOVAL AND INSTALLATION

NG: Repair or replace harness.

1. Turn ignition switch OFF.
2. Check continuity between power window and door lock/unlock switch RH terminals.
   CONNECTOR TERMINAL CONTINUITY SPECIFICATION



   Power window and door lock/unlock switch RH	Terminals		Condition	Continuity
   	6	8	DOWN	Yes
   			NEUTRAL or UP	No
   		11	NEUTRAL or UP	Yes
   			DOWN	No
   	7	8	UP	Yes
   			NEUTRAL or DOWN	No
   		12	NEUTRAL or DOWN	Yes
   			UP	No

Fig 6: Checking Continuity Between Power Window And Door Lock/Unlock Switch RH Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 7.

NG: Replace power window and door lock/unlock switch RH. Refer to REMOVAL AND INSTALLATION .

Check continuity between power window and door lock/unlock switch connector and ground.

Fig 7: Checking Continuity Between Power Window And Door Lock/Unlock Switch Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Check the condition of the harness and the connector.

NG: GO TO 8.

1. Disconnect main power window and door lock/unlock switch and power window and door lock/unlock switch RH.
2. Check continuity between main power window and door lock/unlock switch connector (A) and power window and door lock/unlock switch RH connector (B).
   CONNECTOR TERMINAL CONTINUITY SPECIFICATION



   A		B		Continuity
   Connector	Terminal	Connector	Terminal
   D5	11	D104	11	Yes
   	8		12	Yes

3. Check continuity between main power window and door lock/unlock switch connector (A) and ground.
   CONNECTOR TERMINAL CONTINUITY SPECIFICATION



   A		Ground	Continuity
   Connector	Terminal
   D5	11		No
   	8		No

Fig 8: Checking Continuity Between Main Power Window And Door Lock/Unlock Switch Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 9.

NG: Repair or replace harness.

Check continuity between main power window and door lock/unlock switch terminals.
