Component Parts and Harness Connector Location

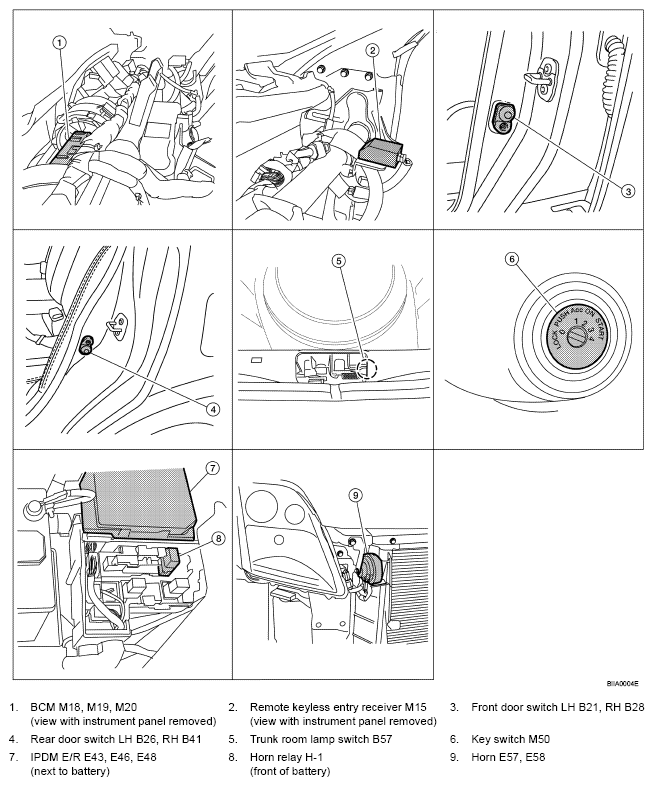

Fig 1: Identifying Remote Keyless Entry System Component And Harness Connector Location

G04927587

Courtesy of NISSAN MOTOR CO., U.S.A.
