Evaporative Emission Line Drawing

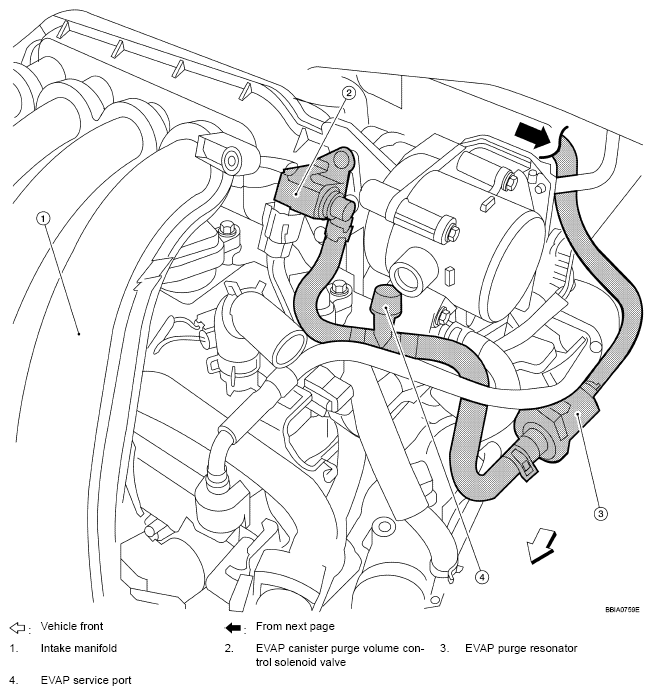

Fig 1: Identifying Evaporative Emission Line (1 Of 2)
G04925096Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

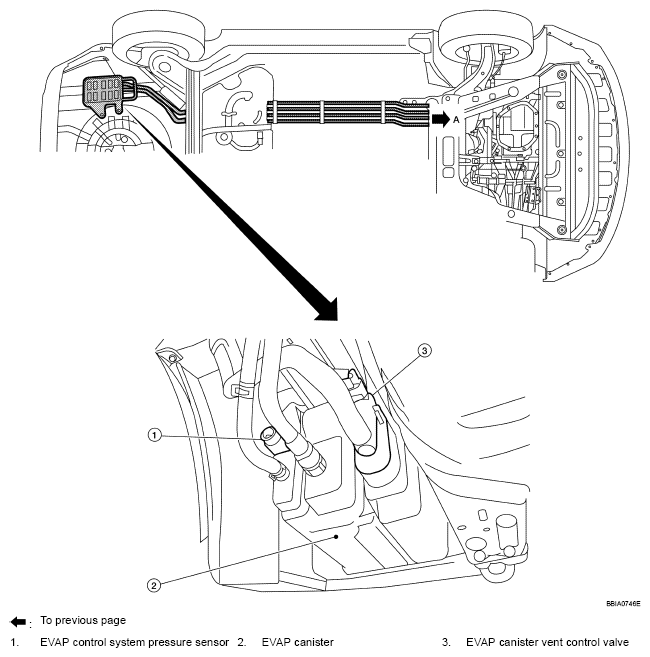

Fig 2: Identifying Evaporative Emission Line (2 Of 2)
G04925097Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
