Disassembly And Assembly

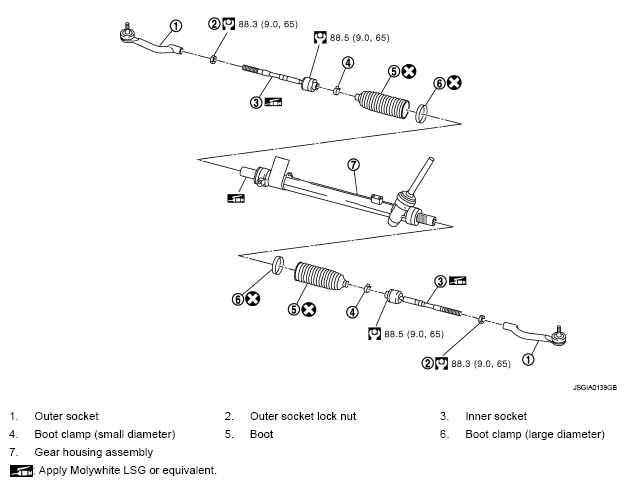

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications

G05370741

Courtesy of NISSAN MOTOR CO., U.S.A.
