Component Parts Location

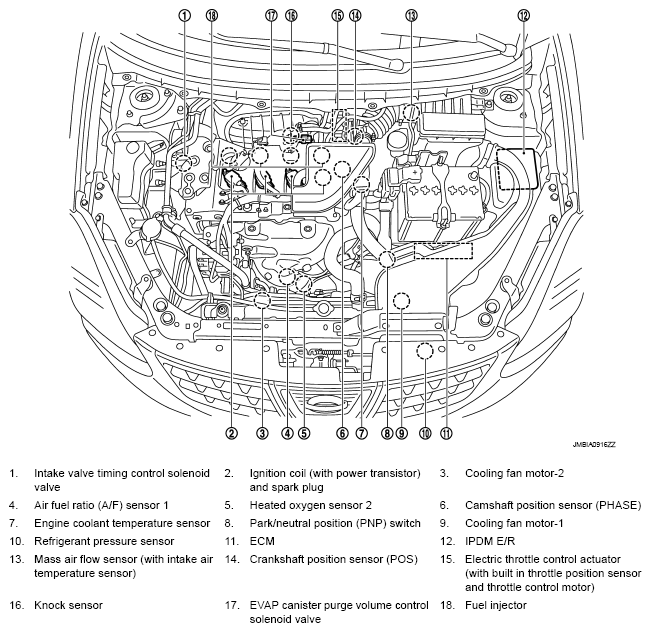

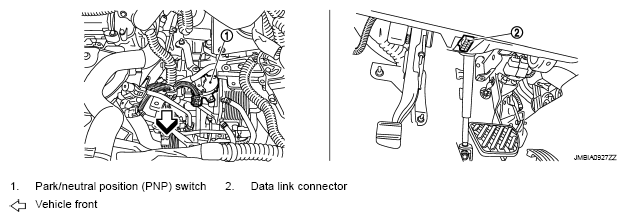

Fig 1: Identifying Evaporative Emission System Components Location (1 Of 11)

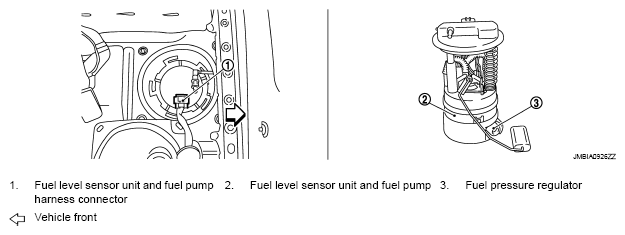

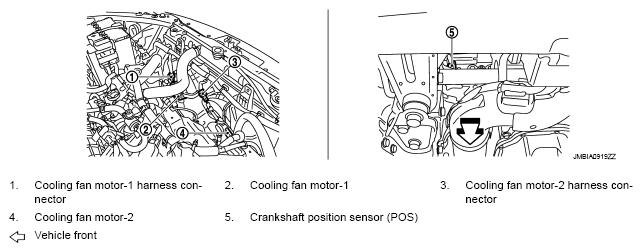

Fig 2: Identifying Evaporative Emission System Components Location (2 Of 11)

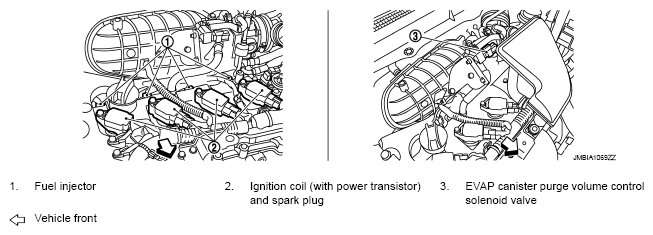

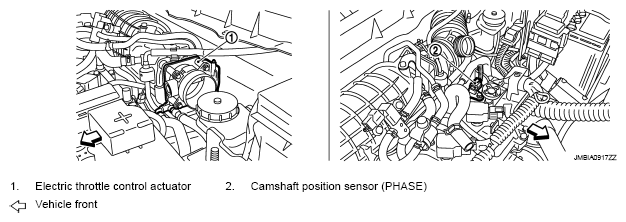

Fig 3: Identifying Evaporative Emission System Components Location (3 Of 11)

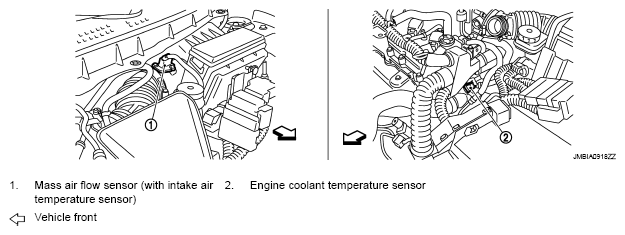

Fig 4: Identifying Evaporative Emission System Components Location (4 Of 11)

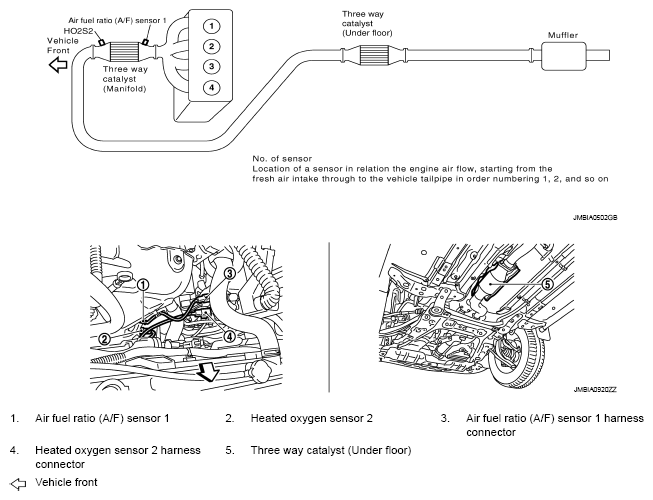

Fig 5: Identifying Evaporative Emission System Components Location (5 Of 11)

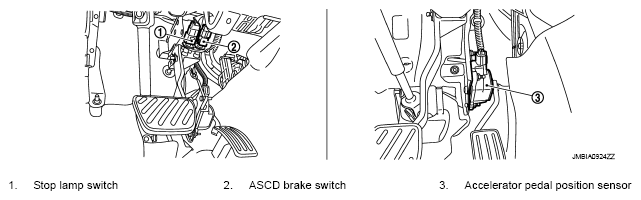

Fig 6: Identifying Evaporative Emission System Components Location (6 Of 11)

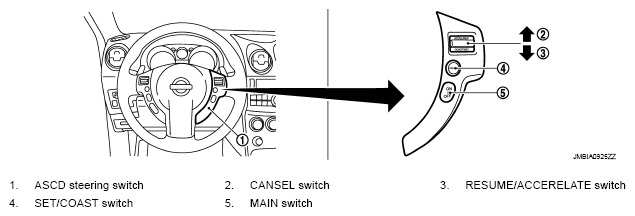

Fig 7: Identifying Evaporative Emission System Components Location (7 Of 11)

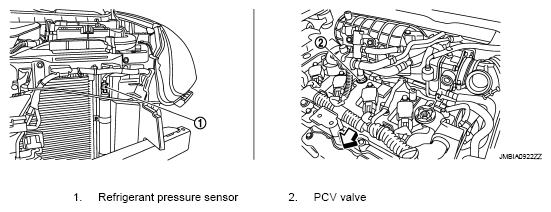

Fig 8: Identifying Evaporative Emission System Components Location (8 Of 11)

Fig 9: Identifying Evaporative Emission System Components Location (9 Of 11)

Fig 10: Identifying Evaporative Emission System Components Location (10 Of 11)

Fig 11: Identifying Evaporative Emission System Components Location (11 Of 11)
