Component Parts Location

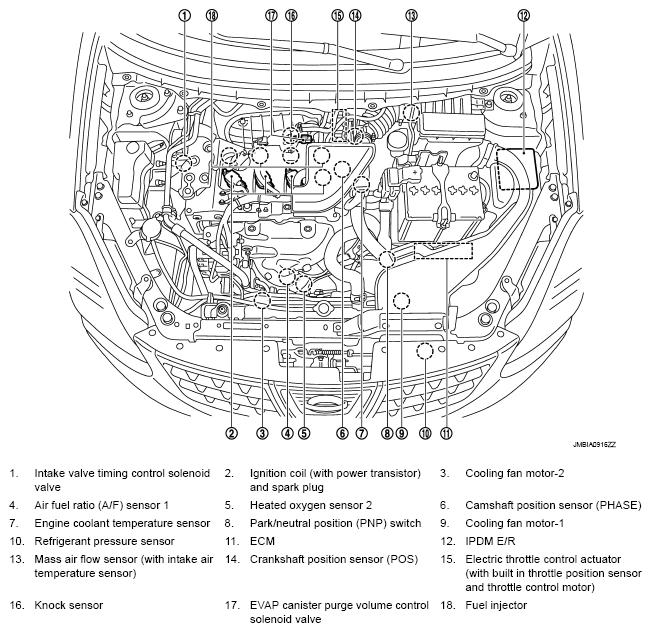

Fig 1: Identifying Intake Valve Timing Control System Components Location (1 Of 12)
G05369908

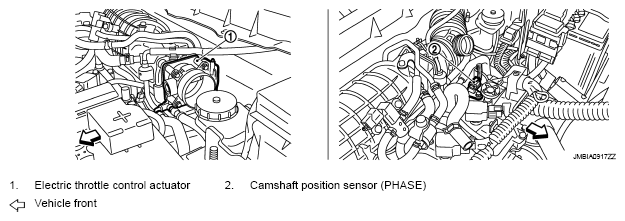

Fig 2: Identifying Intake Valve Timing Control System Components Location (2 Of 12)
G05369909

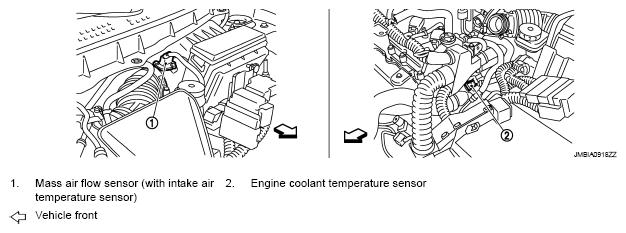

Fig 3: Identifying Intake Valve Timing Control System Components Location (3 Of 12)
G05369910

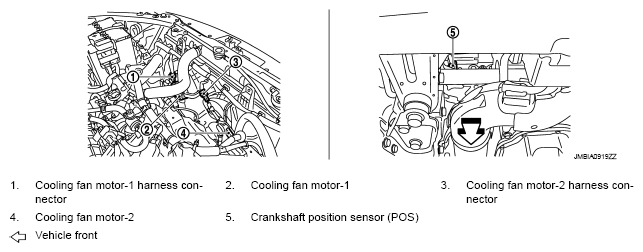

Fig 4: Identifying Intake Valve Timing Control System Components Location (4 Of 12)
G05369911

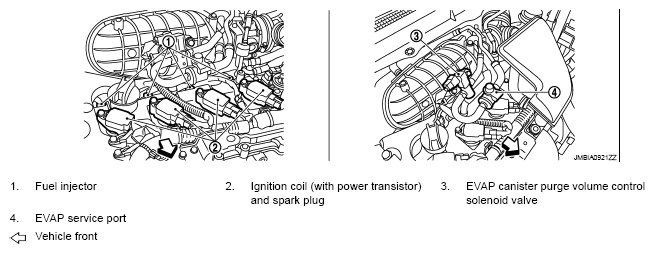

Fig 5: Identifying Intake Valve Timing Control System Components Location (5 Of 12)
G05369912

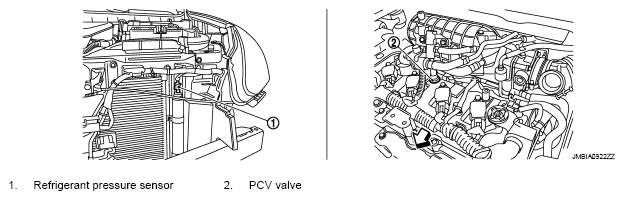

Fig 6: Identifying Intake Valve Timing Control System Components Location (6 Of 12)
G05369913

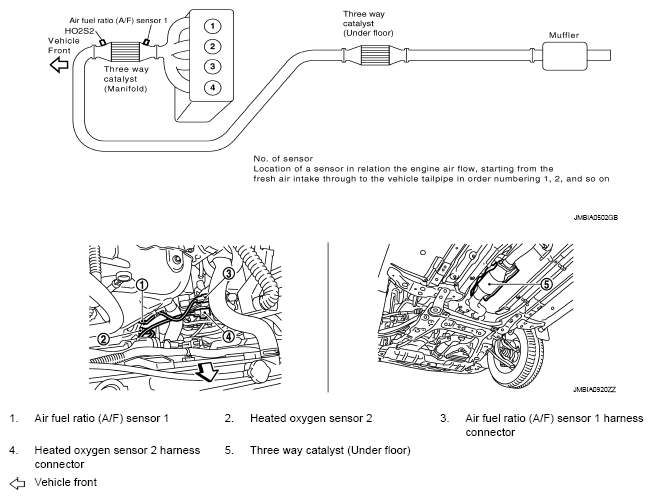

Fig 7: Identifying Intake Valve Timing Control System Components Location (7 Of 12)
G05369914

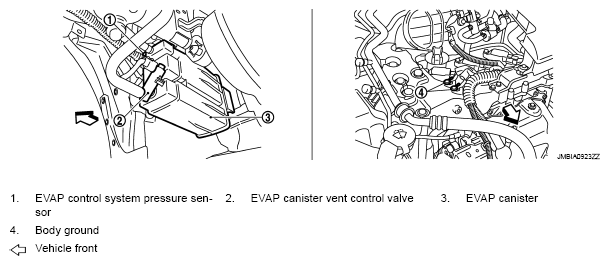

Fig 8: Identifying Intake Valve Timing Control System Components Location (8 Of 12)
G05369915
Fig 9: Identifying Intake Valve Timing Control System Components Location (9 Of 12)
G05369916

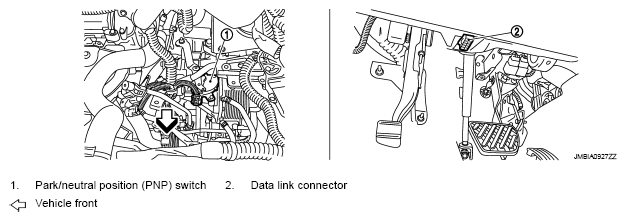

Fig 10: Identifying Intake Valve Timing Control System Components Location (10 Of 12)
G05369917

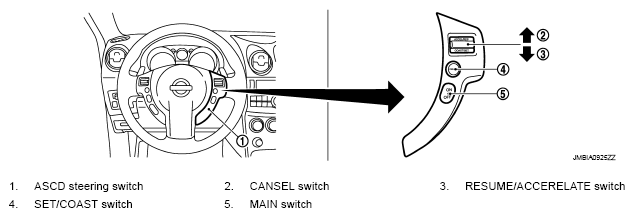

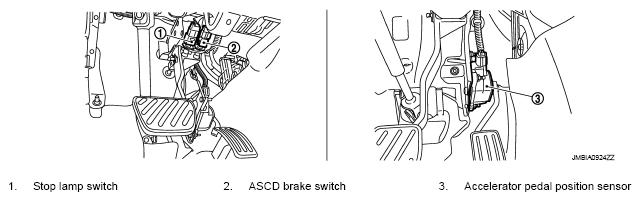

Fig 11: Identifying Intake Valve Timing Control System Components Location (11 Of 12)
G05369918

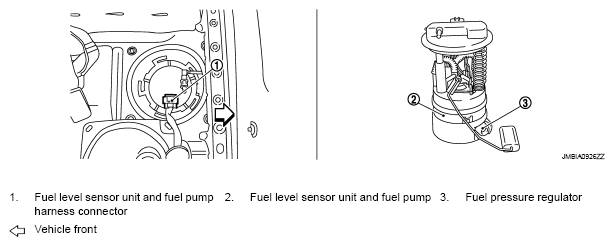

Fig 12: Identifying Intake Valve Timing Control System Components Location (12 Of 12)
G05369919
