DTC P0112, P0113 IAT Sensor: Wiring Diagram

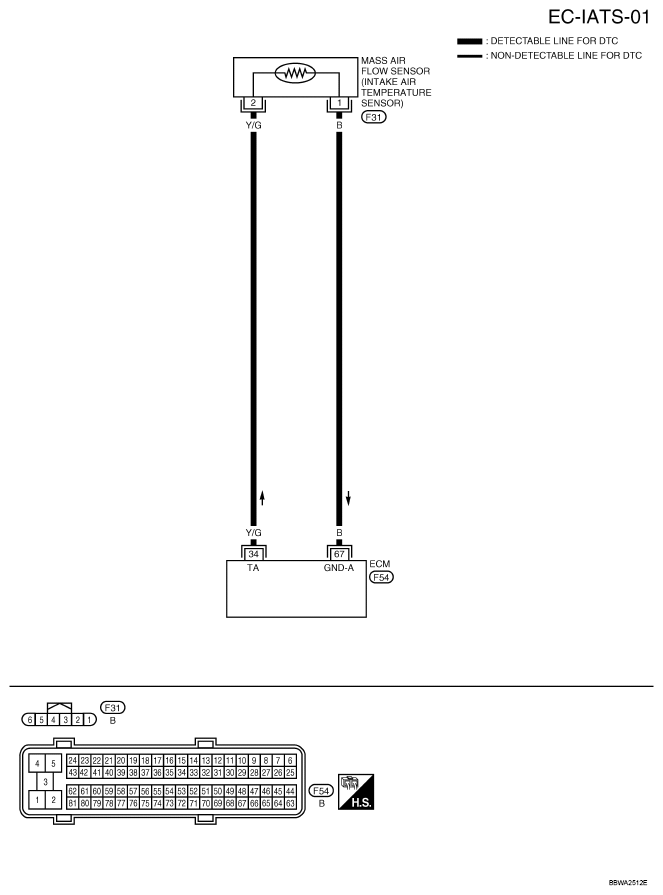

Fig 1: Wiring Diagram - EC-1ATS-01

G04905260

Courtesy of NISSAN MOTOR CO., U.S.A.
