DTC P0850 PNP Switch: Wiring Diagram

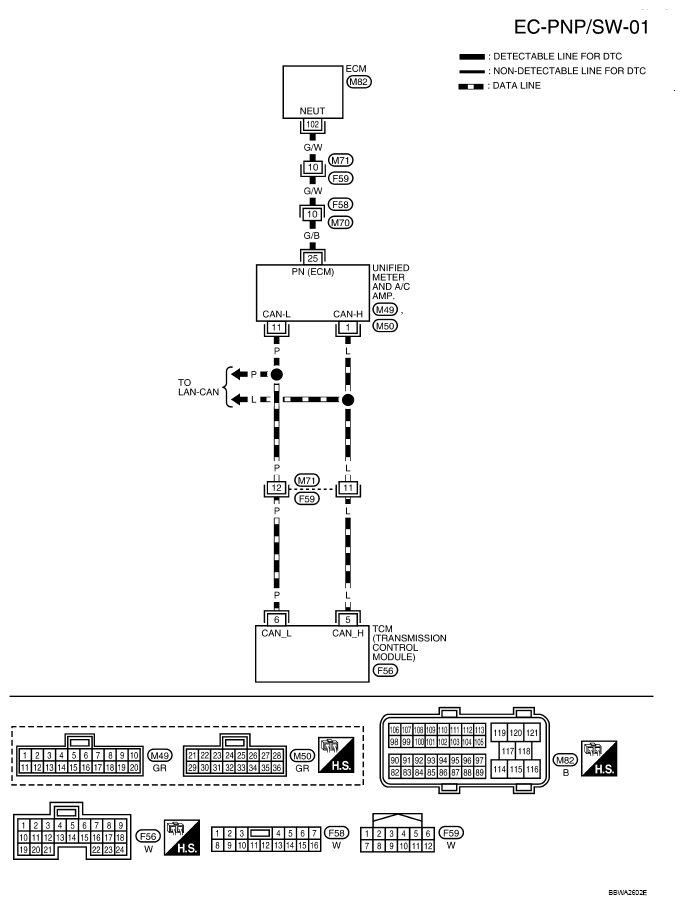

Fig 1: EC-PNP/PW-01 - Wiring Diagram
G04915700Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
ITEM CONDITION SPECIFICATION

TERMINAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage)
102 G/W PNP switch [Ignition switch: ON]
  • Shift lever: P or N
 Approximately 0V
[Ignition switch: ON]
  • Except above position
 BATTERY VOLTAGE
(11 - 14V)
