Overall Sequence

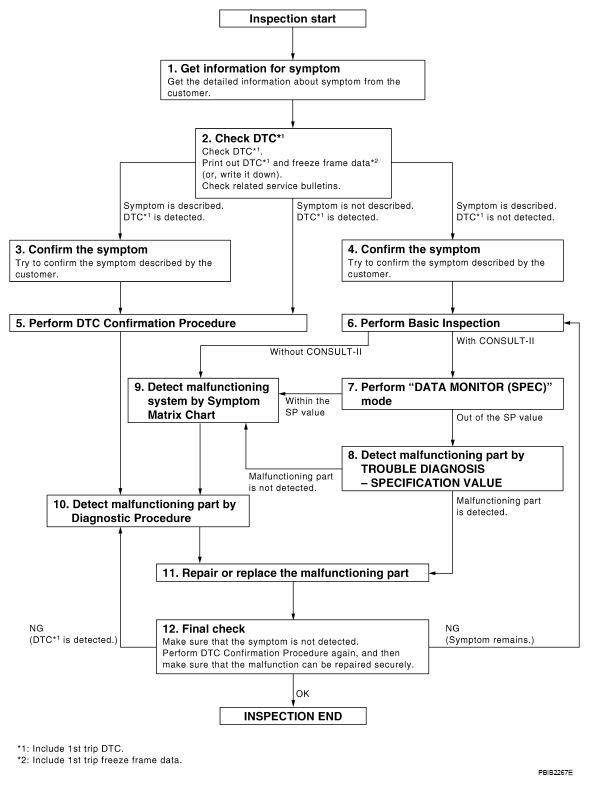

Fig 1: Diagnosis And Repair Workflow Chart

G05699804

Courtesy of NISSAN MOTOR CO., U.S.A.
