Component Parts Location

WARNING: This page is about a different variant/trim than selected.

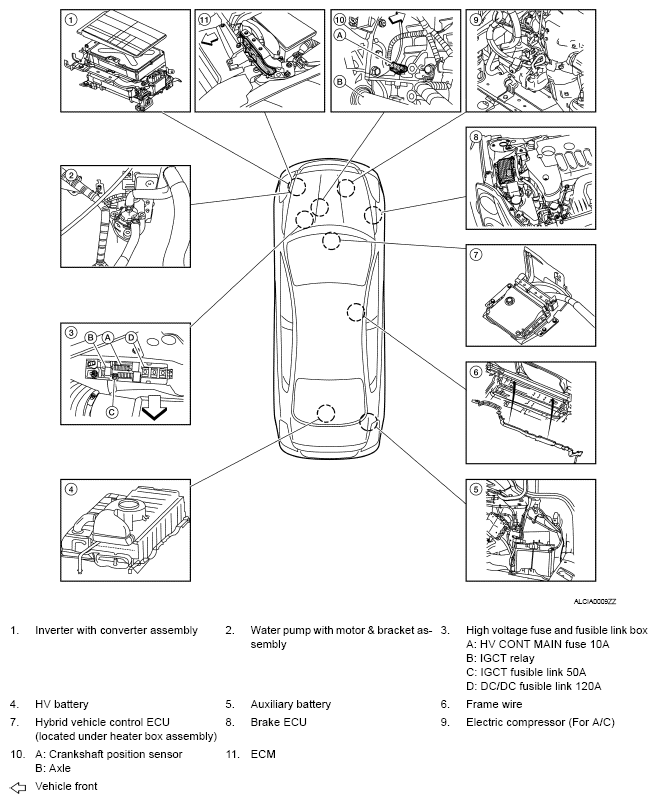

Fig 1: Identifying Automatic Speed Control Device Component Parts Location (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

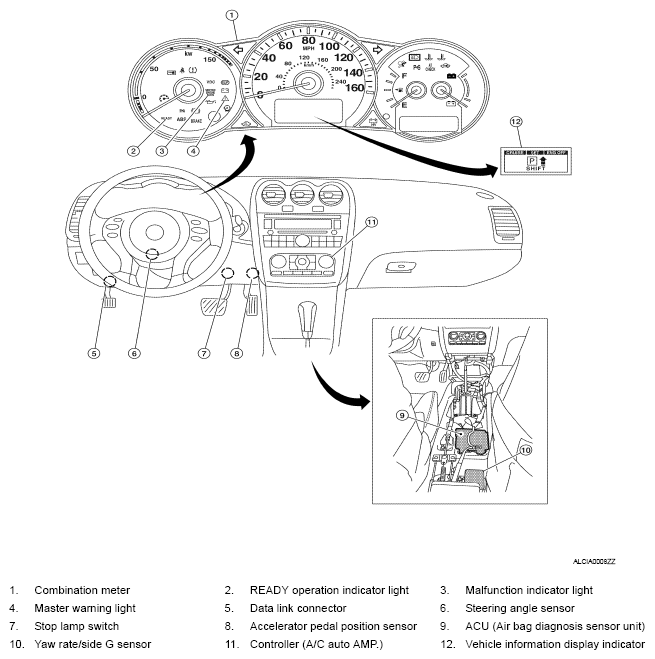

Fig 2: Identifying Automatic Speed Control Device Component Parts Location (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

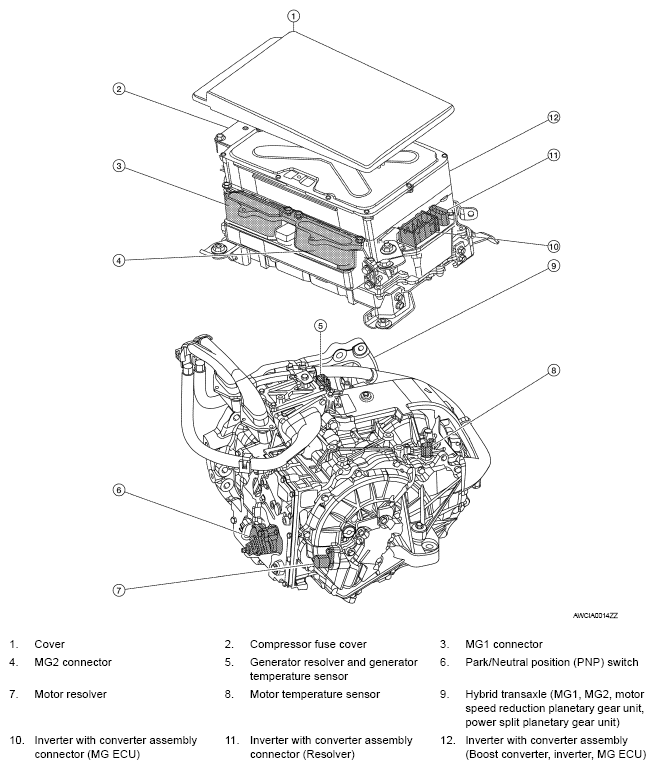

Fig 3: Identifying Automatic Speed Control Device Component Parts Location (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

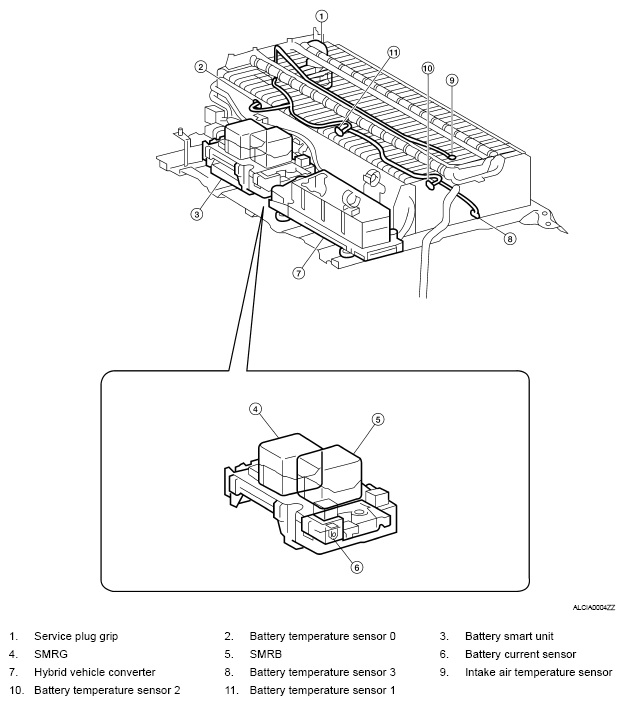

Fig 4: Identifying Automatic Speed Control Device Component Parts Location (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
