Component Function Check

WARNING: This page is about a different variant/trim than selected.

CHECK FUEL PUMP FUNCTION
1. Turn ignition switch ON.
2. Pinch fuel feed hose (1) with two fingers.
  Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.

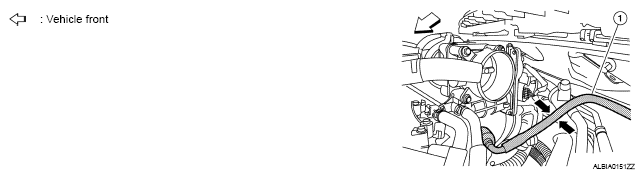

  Fig 1: Identifying Fuel Feed Hose
  Courtesy of NISSAN MOTOR CO., U.S.A.
Is the inspection result normal?

YES : INSPECTION END

NO : "DIAGNOSIS PROCEDURE ".
