System - Engine Mechanical & Other
System - Engine Mechanical & Other

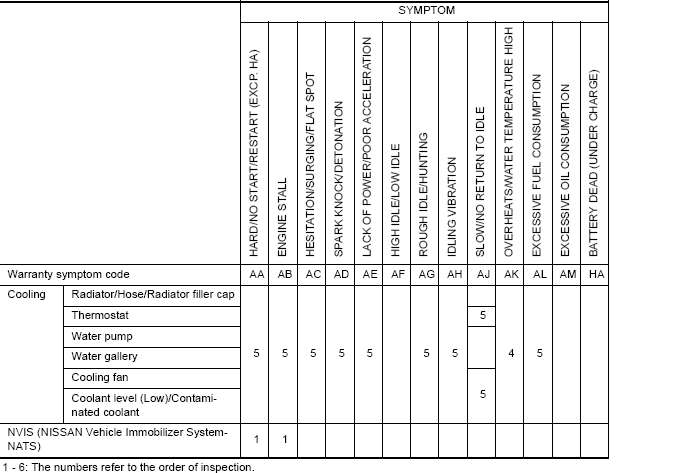

Fig 1: Symptom Matrix Chart - Engine Mechanical & Other (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

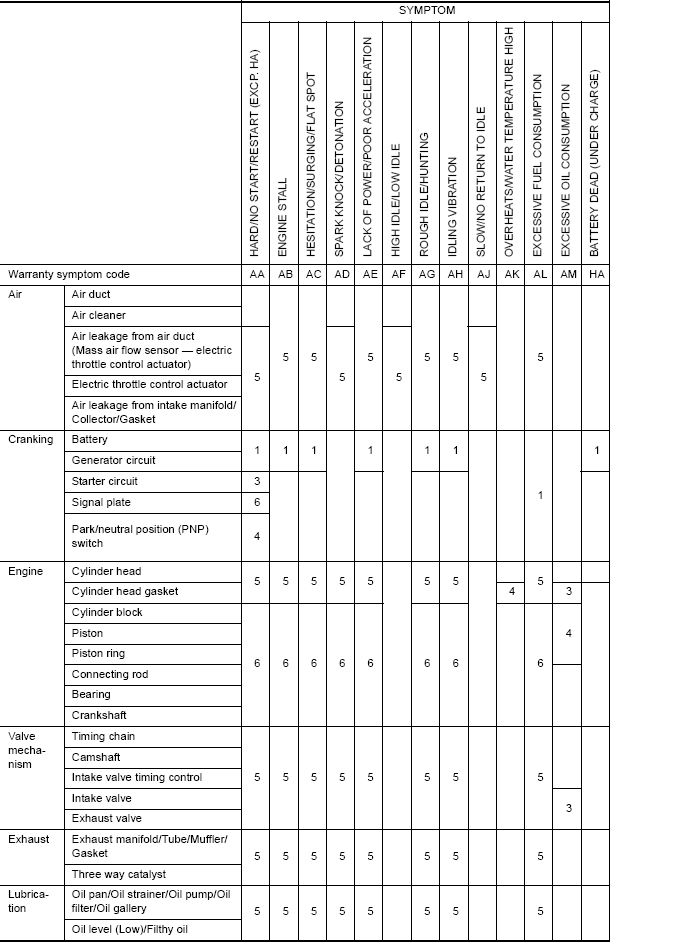

Fig 2: Symptom Matrix Chart - Engine Mechanical & Other (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

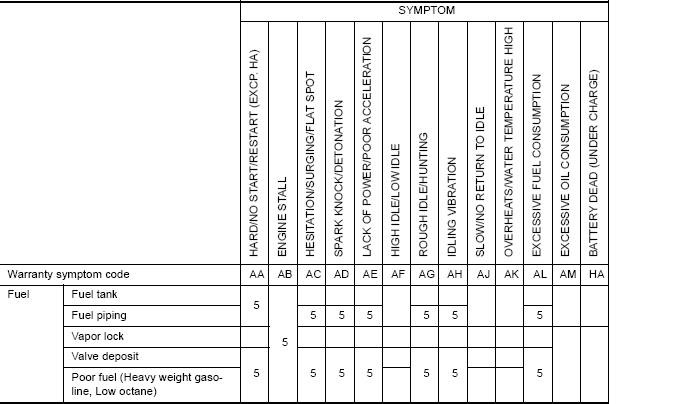

Fig 3: Symptom Matrix Chart - Engine Mechanical & Other (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
