Overall Sequence

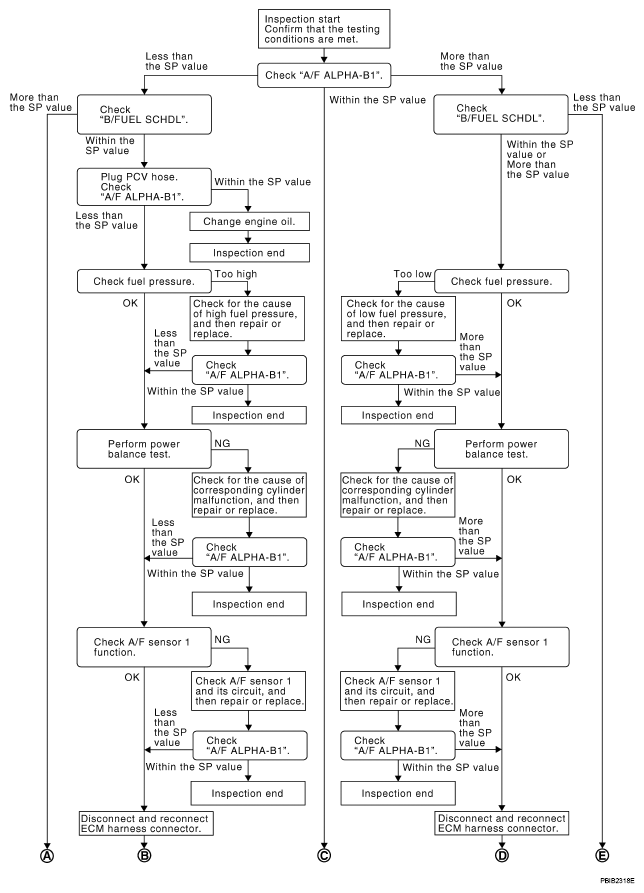

Fig 1: Diagnostic Procedure - Overall Sequence (1 Of 2)
G04812020Courtesy of NISSAN NORTH AMERICA, INC.

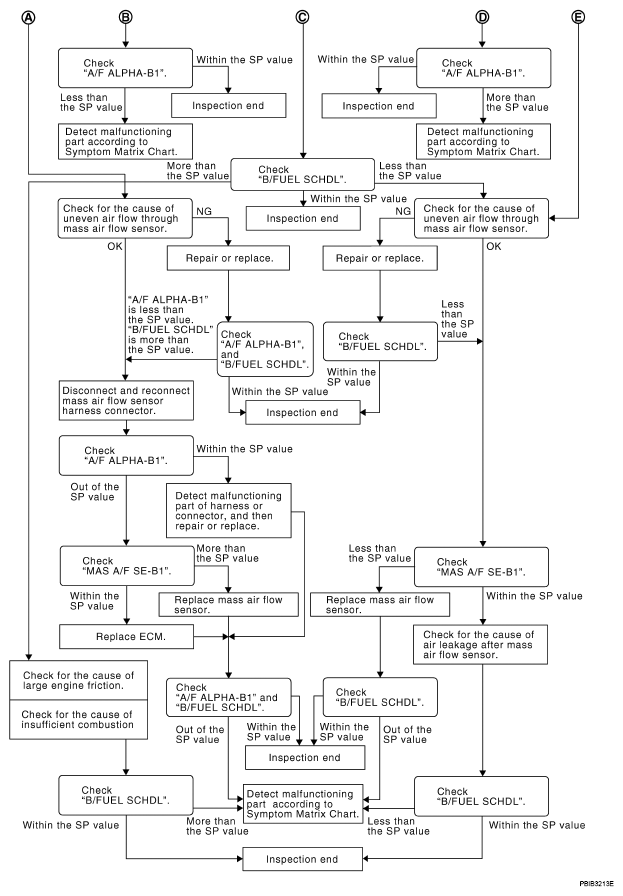

Fig 2: Diagnostic Procedure - Overall Sequence (2 Of 2)
G04812021Courtesy of NISSAN NORTH AMERICA, INC.
