Home >> Nissan-Datsun >> 2007 >> Sentra SE-R >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Continuously Variable Transmission (CVT) >> CVT Shift Lock System >> Shift Lock System Electrical Parts Location

Shift Lock System Electrical Parts Location

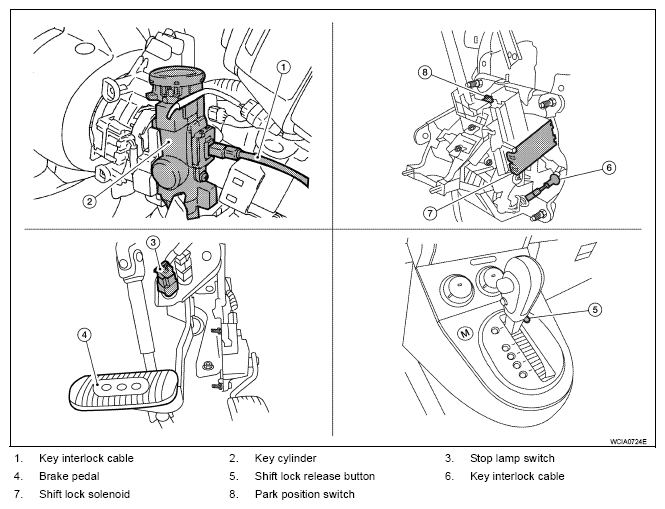

Fig 1: Identifying Shift Lock System Electrical Parts Location

G04927095
