Water Outlet And Water Control Valve: Components

WARNING: This page is about a different variant/trim than selected.

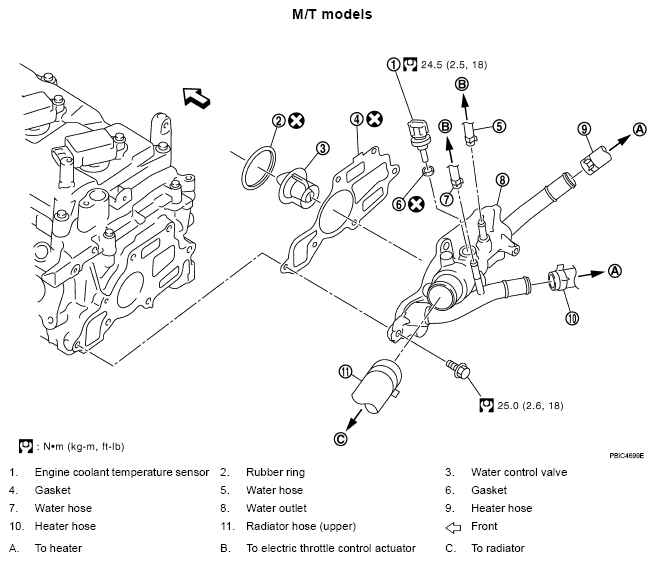

Fig 1: Water Outlet And Water Control Valve Replacement Components (M\T Models) With Torque Specifications
G04925032

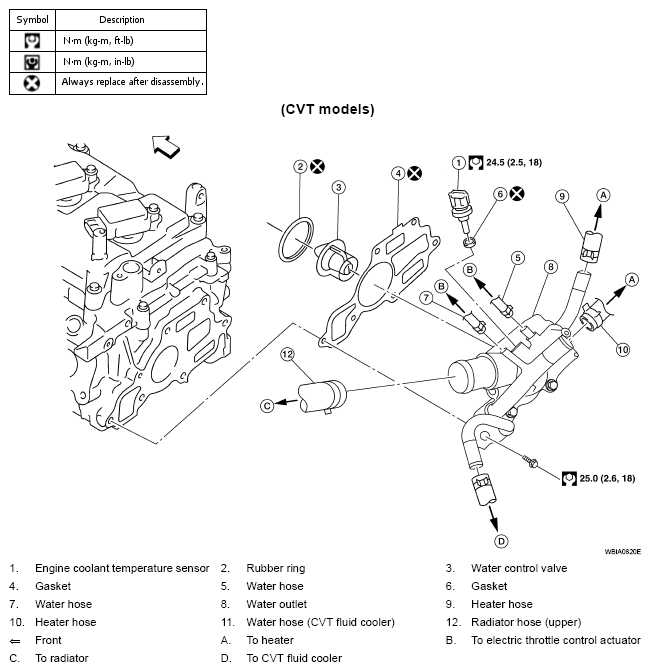

Fig 2: Water Outlet And Water Control Valve Replacement Components (CVT Models) With Torque Specifications
G04925033
