Removal and Installation QR25DE: Notes

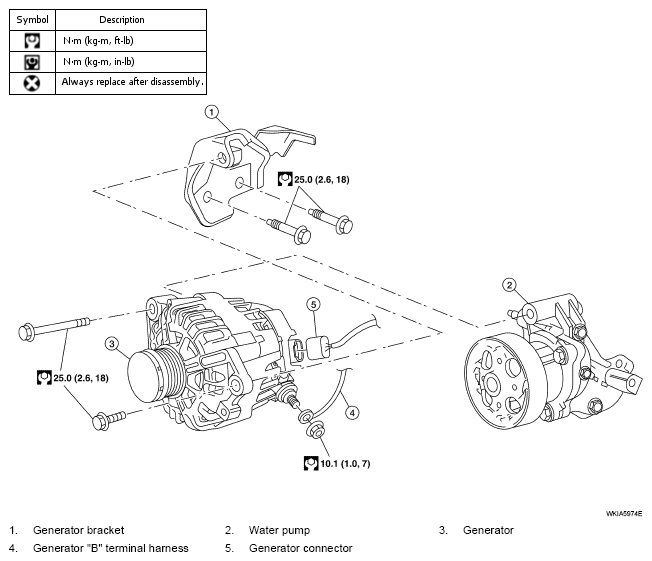

Fig 1: Charging System Replacement Components (QR25DE) With Torque Specifications

G04928287
