System - Engine Mechanical & Other

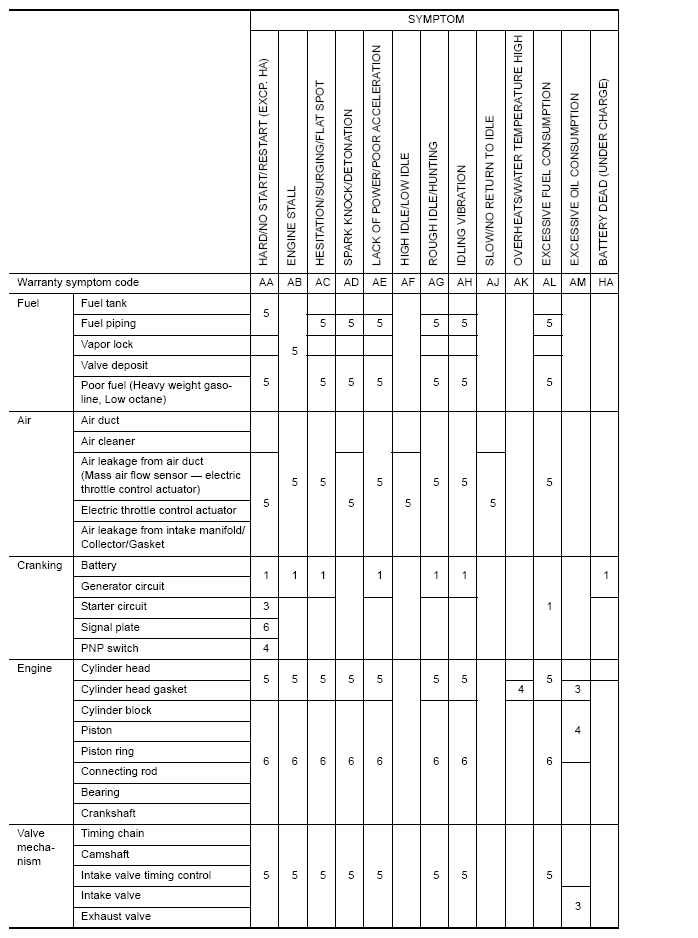

Fig 1: Engine Mechanical & Other - Symptom Matrix Chart (1 Of 2)
G04920074Courtesy of NISSAN NORTH AMERICA, INC.

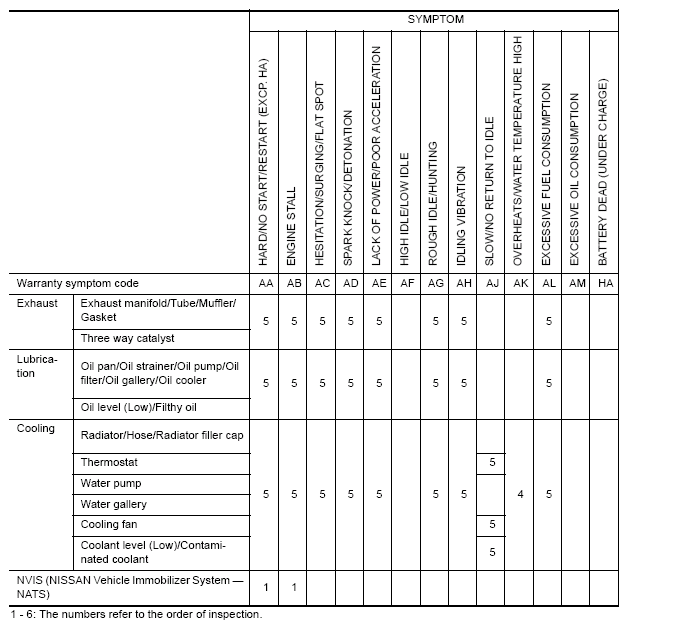

Fig 2: Engine Mechanical & Other - Symptom Matrix Chart (2 Of 2)
G04920075Courtesy of NISSAN NORTH AMERICA, INC.
