System-Engine Mechanical & Other

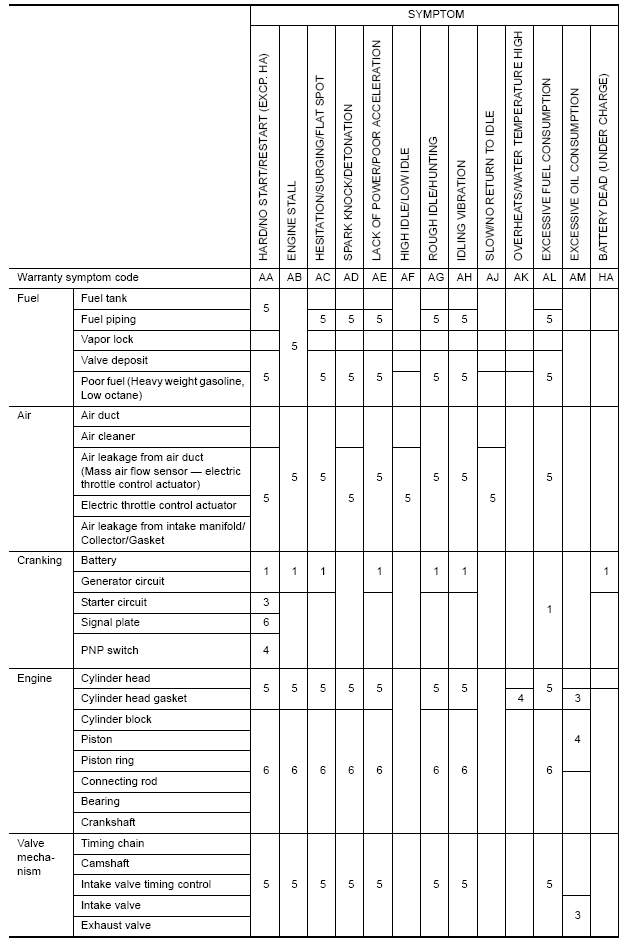

Fig 1: Symptom Chart For System Engine Mechanical & Other (1 Of 2)
G04886670Courtesy of NISSAN NORTH AMERICA, INC.

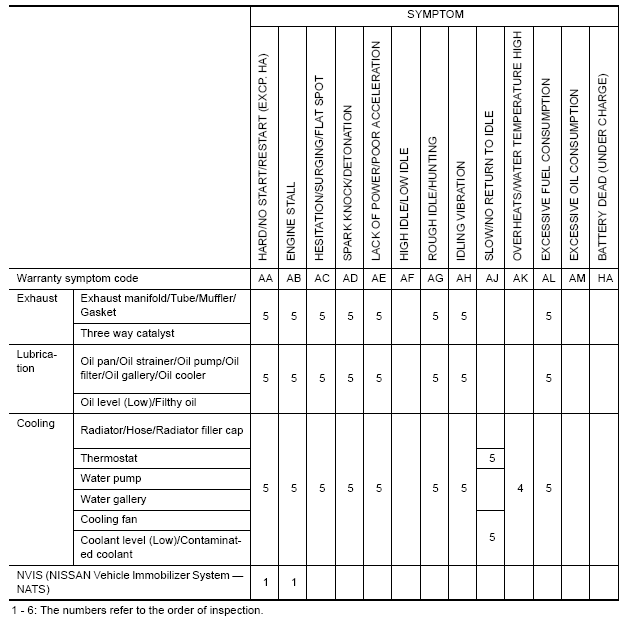

Fig 2: Symptom Chart For System Engine Mechanical & Other (2 Of 2)
G04886671Courtesy of NISSAN NORTH AMERICA, INC.
