System - Basic Engine Control System

WARNING: This page is about a different variant/trim than selected.

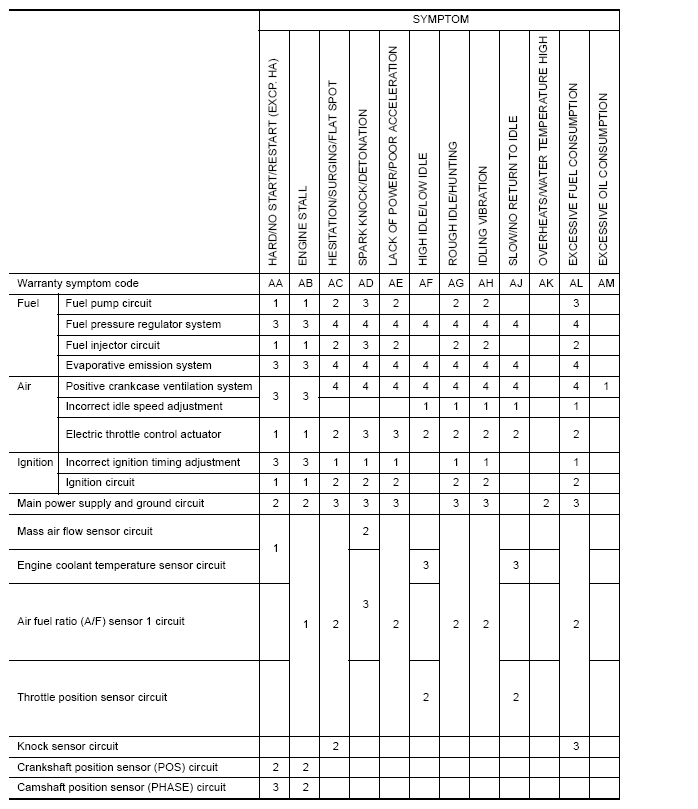

Fig 1: Basic Engine Control System - Symptom Chart (1 Of 2)
G05030086Courtesy of NISSAN MOTOR CO., U.S.A.

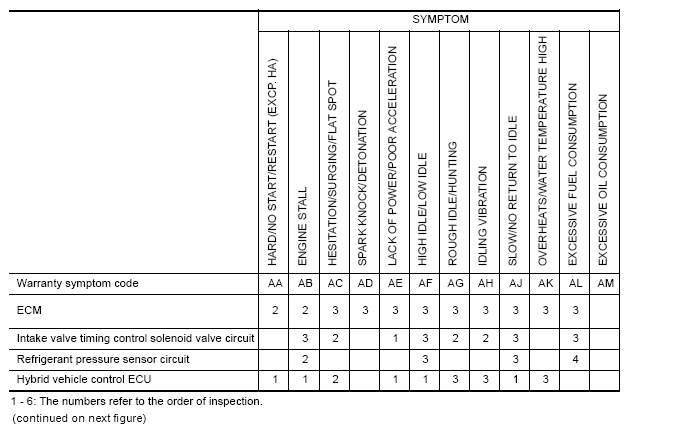

Fig 2: Basic Engine Control System - Symptom Chart (2 Of 2)
G05030087Courtesy of NISSAN MOTOR CO., U.S.A.
