IGNITION TIMING: Special Repair Requirement

  1. CHECK IGNITION TIMING

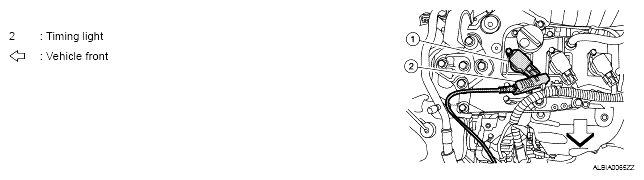

    1. Attach timing light to No. 1 ignition coil (1) wire as shown.
      Fig 1: Attaching Timing Light To No. 1 Ignition Coil
      G04886709Courtesy of NISSAN NORTH AMERICA, INC.
    2. Check ignition timing.
      Fig 2: Checking Ignition Timing
      G04886710Courtesy of NISSAN NORTH AMERICA, INC.

      : INSPECTION END
