Control Valve Lower Body: Disassembly

Remove valves at retainer plate.
For removal procedures, Refer to "DISASSEMBLY ".

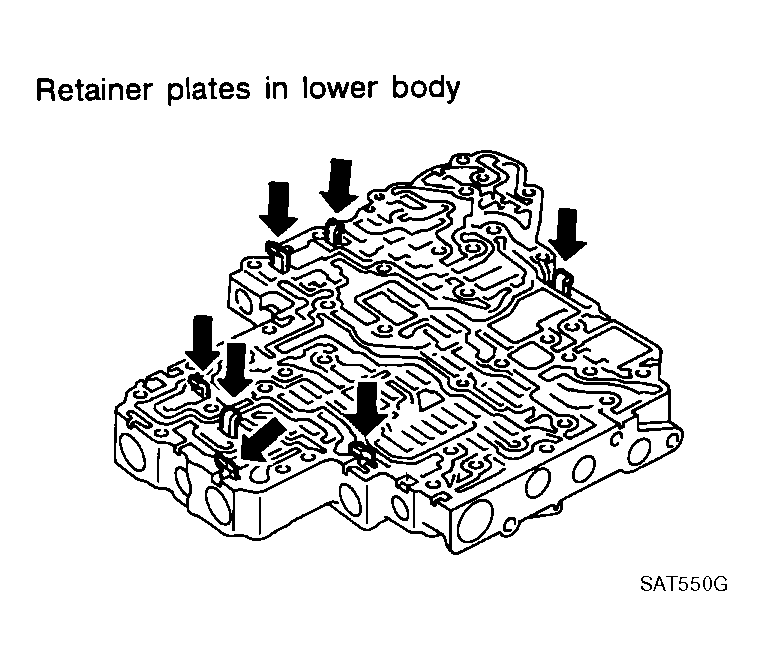

Fig 1: Removing Valves At Retainer Plate

G04194186

Courtesy of NISSAN MOTOR CO., U.S.A.
