Automatic Transmission - Component Testing, Removal And Installation And Overhaul (Re4F04B)
>>
Repair For Component Parts
>>
Band Servo Piston Assembly
>>
Components
Band Servo Piston Assembly: Components

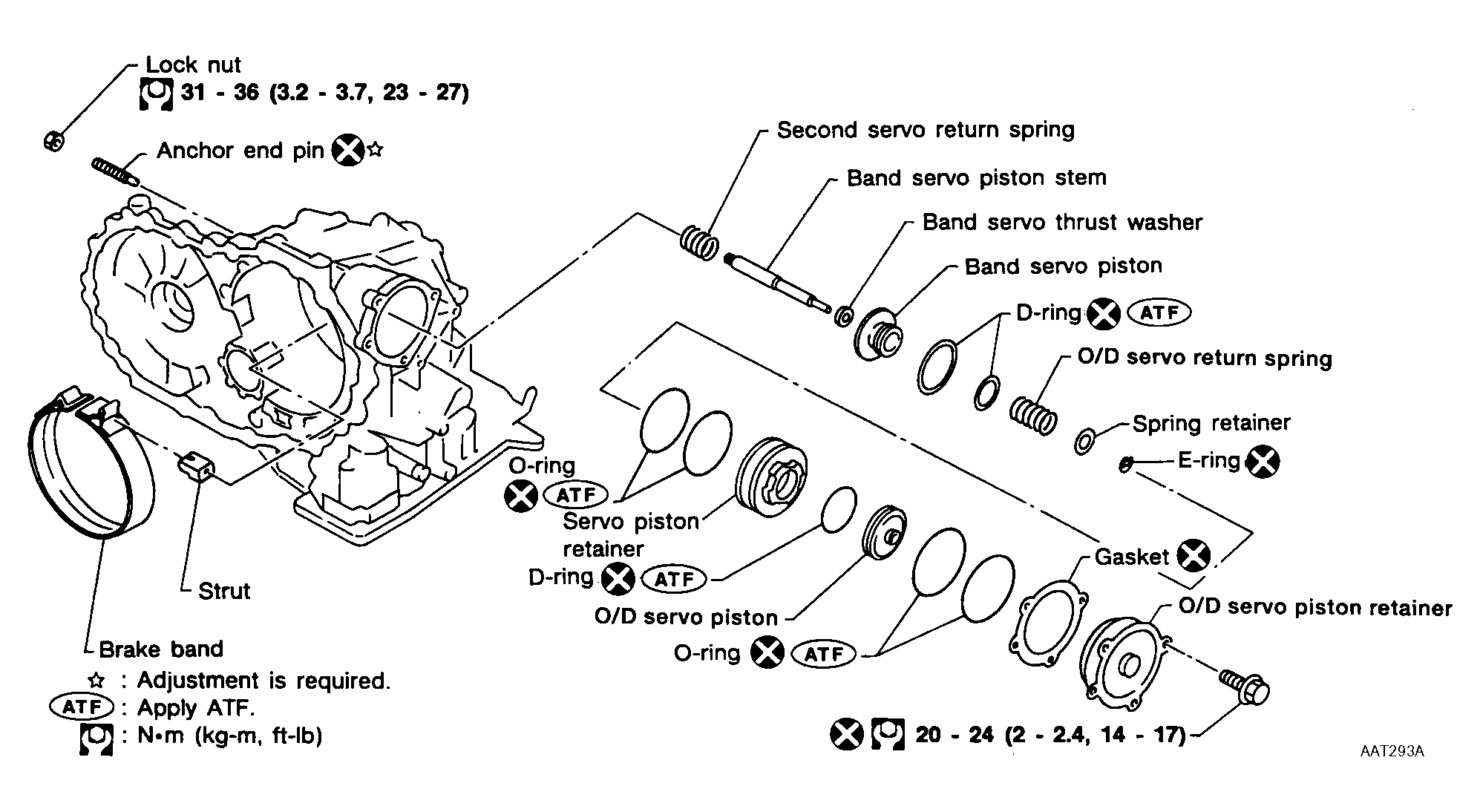

Fig 1: Band Servo Piston Assembly Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
