Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • To install, reverse the removal procedure sequence.

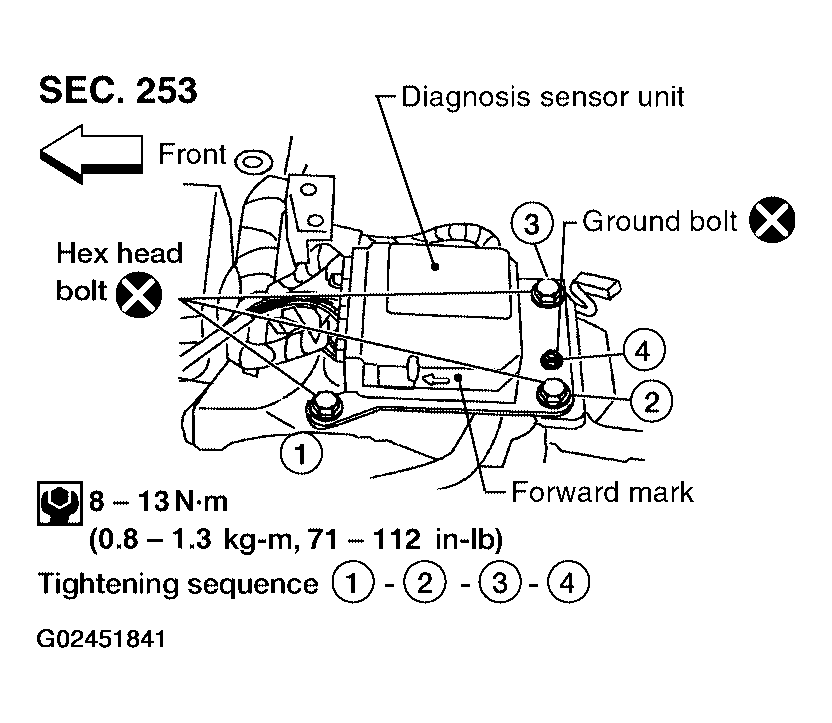

    Fig 1: Removing/Installing Diagnosis Sensor Unit With Torque Specifications
    G02451841Courtesy of NISSAN MOTOR CO., U.S.A.
