Retainer Plate (For Control Valve Lower Body)

WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Refer to CONTROL VALVE LOWER BODY .

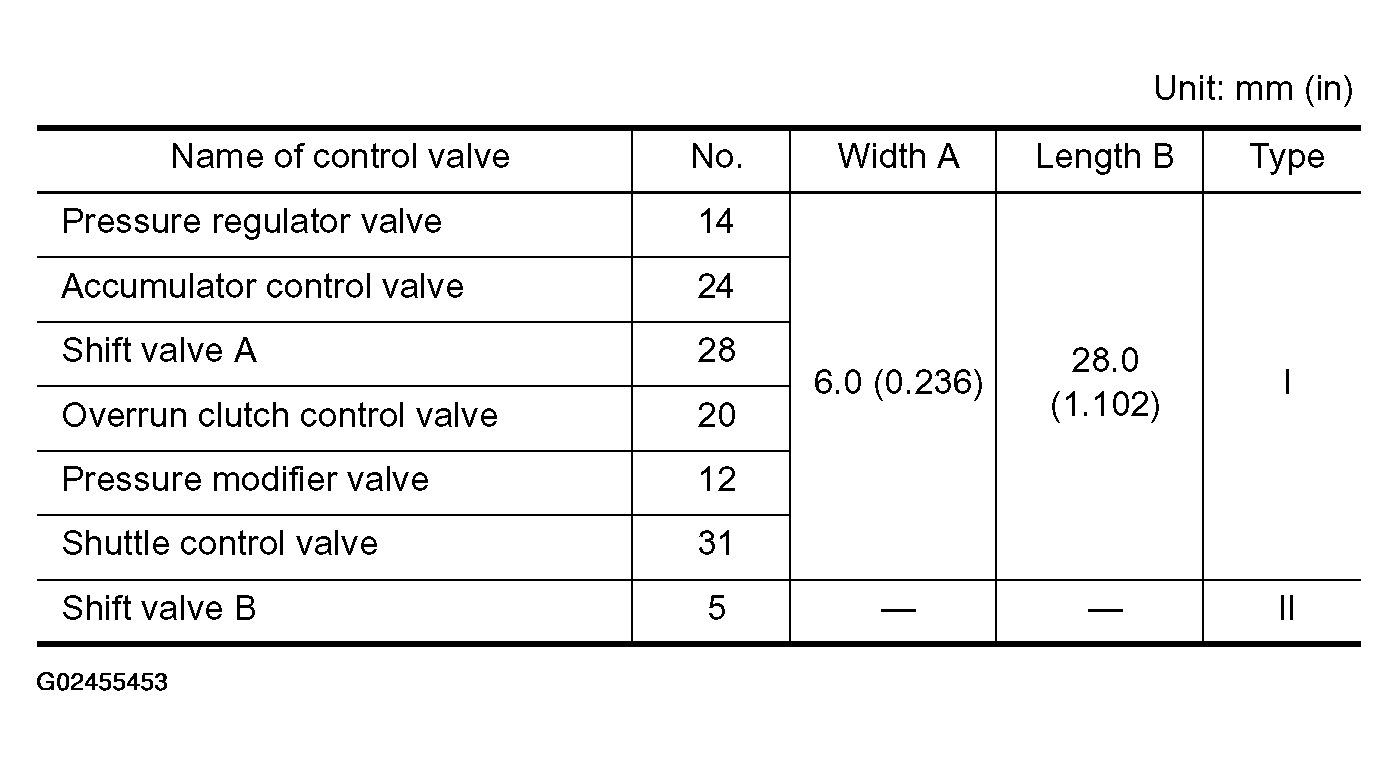

Fig 1: Control Valve Specification Chart
G02455453Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Control Valve Lower Body
G02455454Courtesy of NISSAN MOTOR CO., U.S.A.
