Adjustment (2): Notes

WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

When any parts listed below are replaced, adjust total end play and reverse clutch end play.

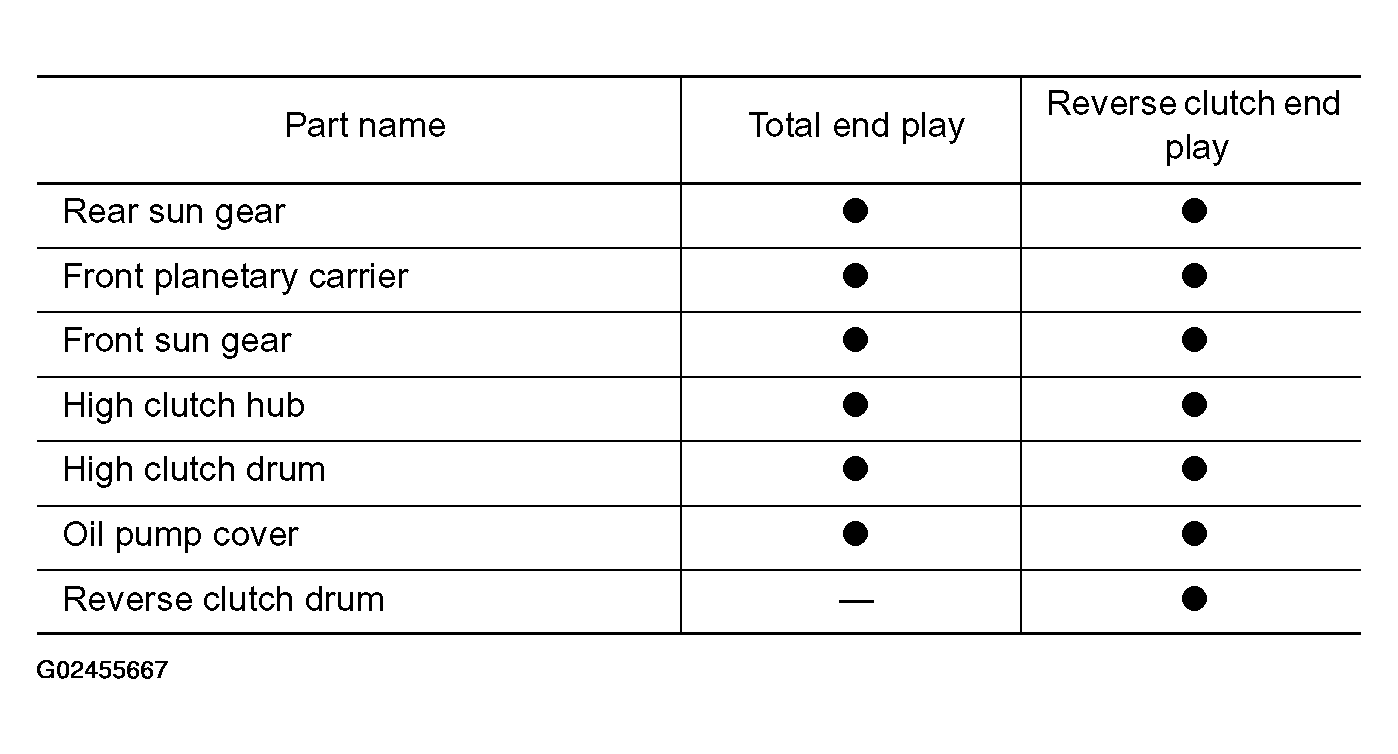

Fig 1: Adjusting Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Adjusting Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
