Stop Lamp Switch

  1. Disconnect stop lamp switch harness connector.
    Fig 1: View Of ASCD Brake Switch & Stop Lamp Switch
    G04147624Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.
    STOP LAMP SWITCH CONTINUITY

    Conditions Continuity
    Brake pedal: Fully released Should not exist.
    Brake pedal: Slightly depressed Should exist.
  3. If NG, adjust stop lamp switch installation, refer to "BRAKE PEDAL ", and perform step  2 again.

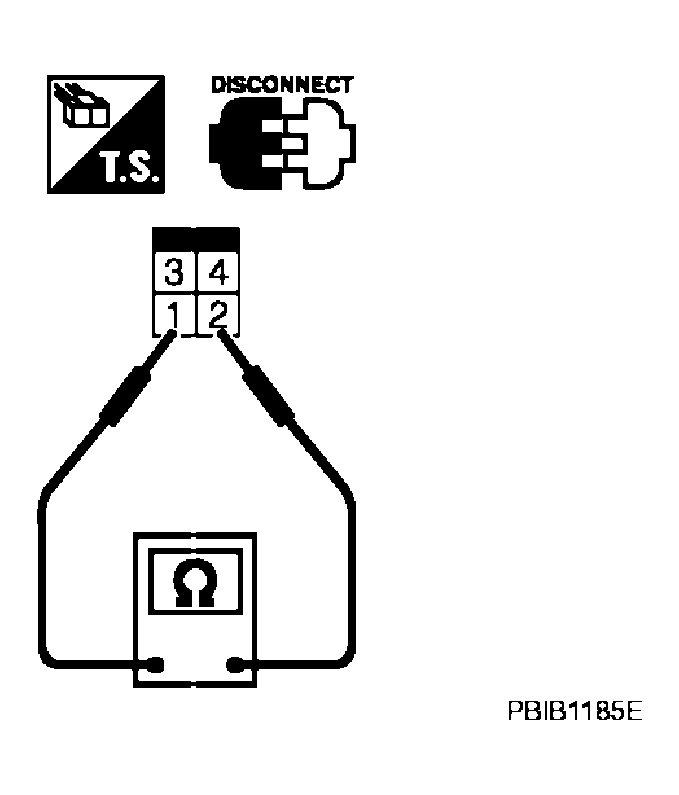

    Fig 2: Checking Continuity Between Stop Lamp Switch Terminals 1 And 2
    G04173700Courtesy of NISSAN MOTOR CO., U.S.A.
