SRT Service Procedure

If a vehicle has failed the state emissions inspection due to one or more SRT items indicating "INCMP", review the flowchart diagnostic sequence on the next page.

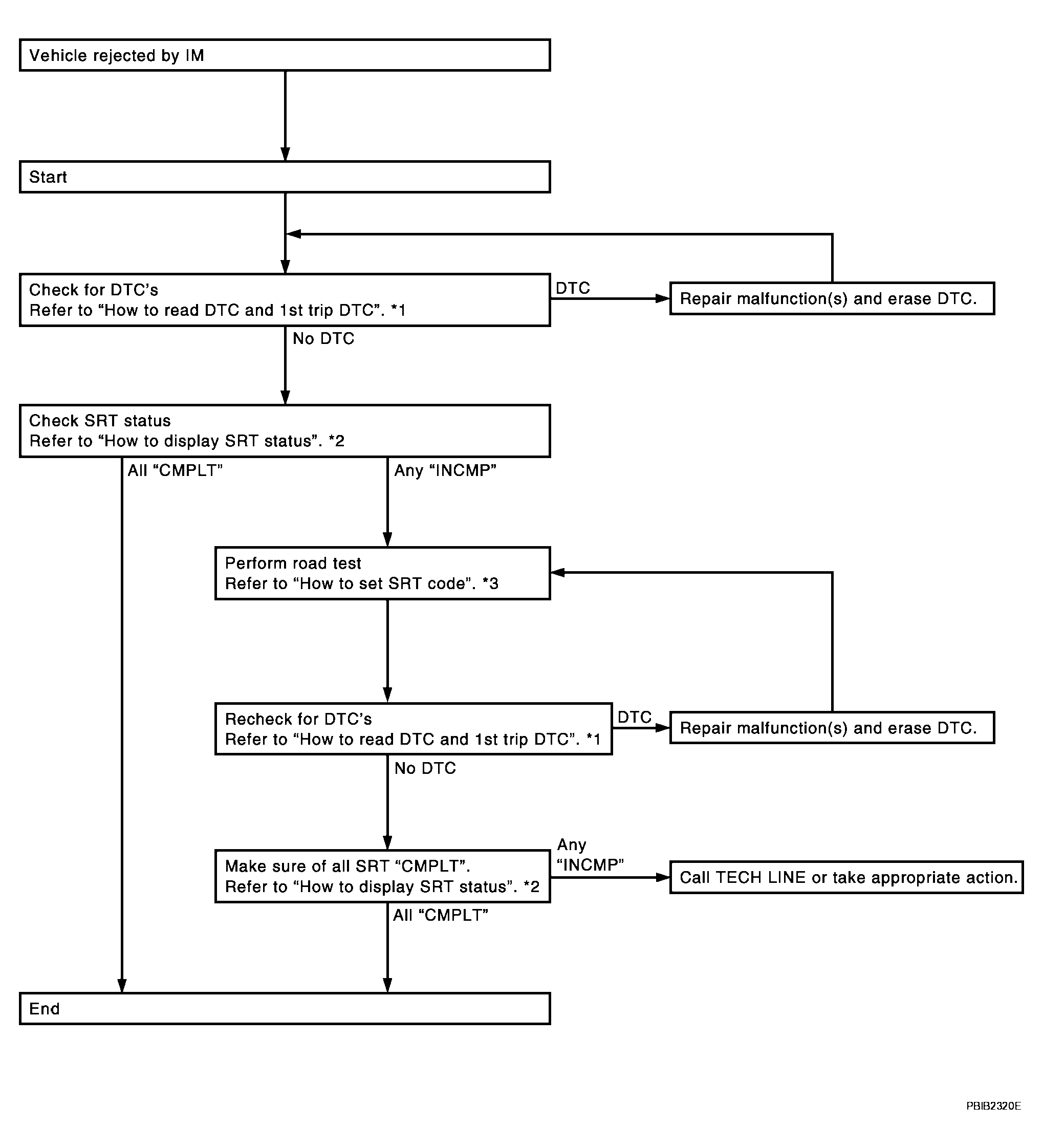

Fig 1: SRT Service Flow Chart
G04215798Courtesy of NISSAN MOTOR CO., U.S.A.
SRT SERVICE FLOW CHART REFERENCES

*1. DTC AND 1ST TRIP DTC
*2. HOW TO DISPLAY SRT STATUS
*3. HOW TO SET SRT CODE
