Stop Lamp Switch

  1. Disconnect stop lamp switch harness connector.

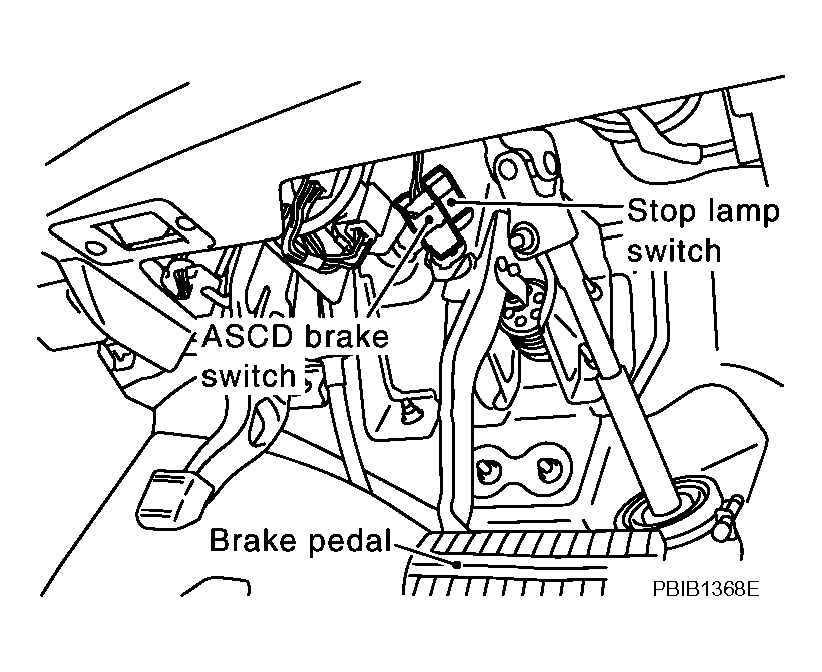

    Fig 1: Disconnecting Stop Lamp Switch Harness Connector
    G04216419Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check continuity between stop lamp switch terminals 3 and 4 under the following conditions.
    CONDITION CONTINUITY CHART

    Conditions Continuity
    Brake pedal: Fully released Should not exist
    Brake pedal: Slightly depressed Should exist
  3. If NG, adjust stop lamp switch installation, refer to "BRAKE PEDAL ", and perform step  2 again.
    Fig 2: Checking Continuity Between Stop Lamp Switch Terminals 1 And 2
    G04216420Courtesy of NISSAN MOTOR CO., U.S.A.
