System Diagram

WARNING: This page is about a different variant/trim than selected.

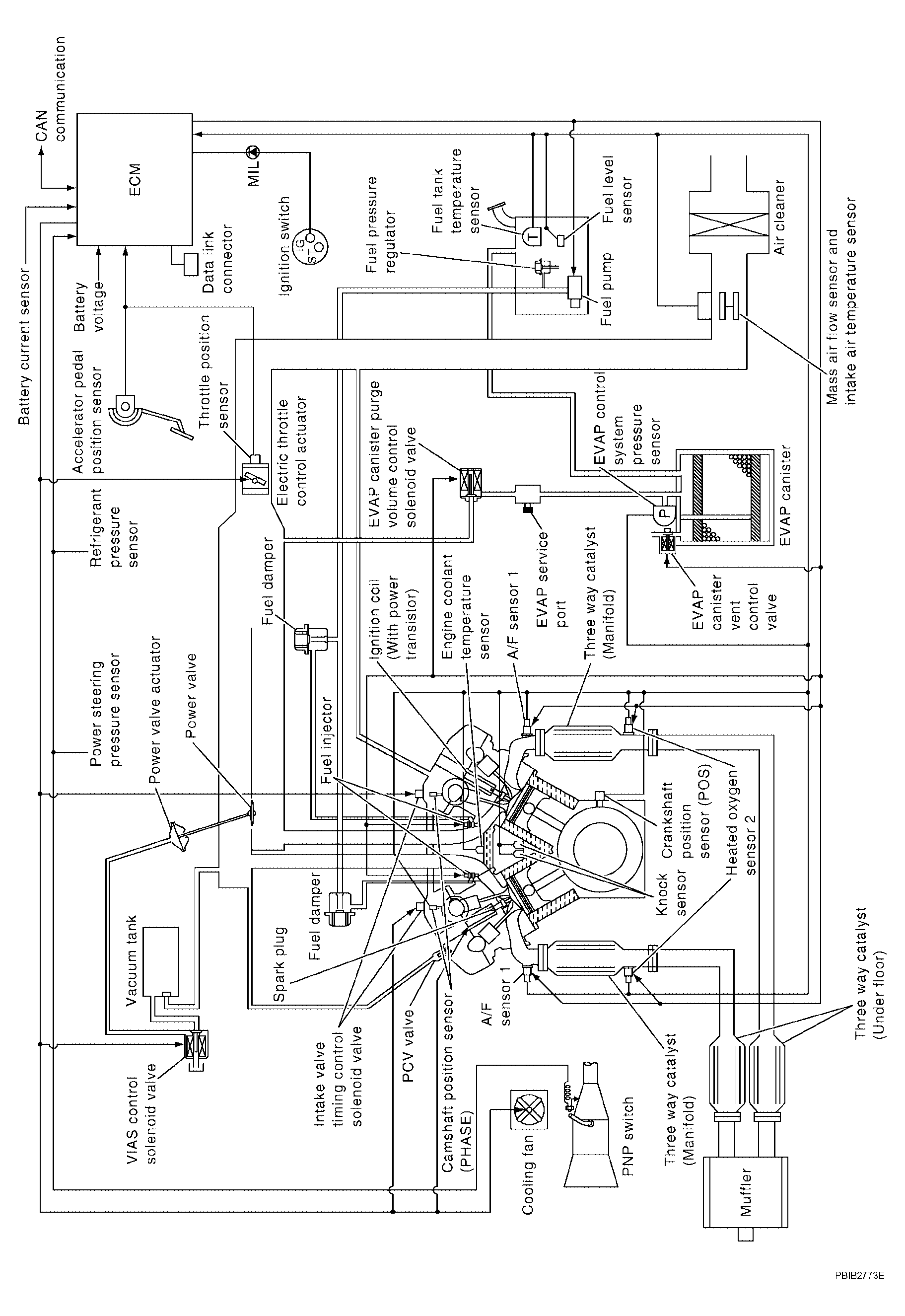

Fig 1: Engine Control - System Diagram

G04147826

Courtesy of NISSAN MOTOR CO., U.S.A.
