Method A

WARNING: This page is about a different variant/trim than selected.
  1. Attach timing light to loop wire as shown.
    Fig 1: Identifying Timing Light To Loop Wire
    G04147880Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check ignition timing.

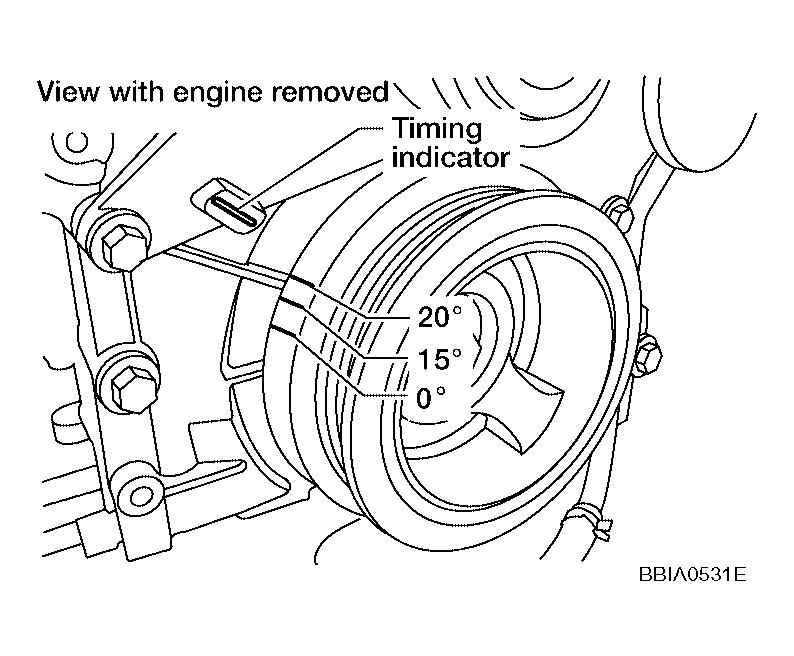

    Fig 2: Identifying Ignition Timing
    G04147881Courtesy of NISSAN MOTOR CO., U.S.A.
