Front Wheel Turning Angle

  1. Rotate steering wheel all the way right and left; measure turning angle. Refer to , "GENERAL SPECIFICATIONS (FRONT) ".
  2. If it is not within specifications, check rack stroke. Refer to , "STEERING GEAR AND LINKAGE ".

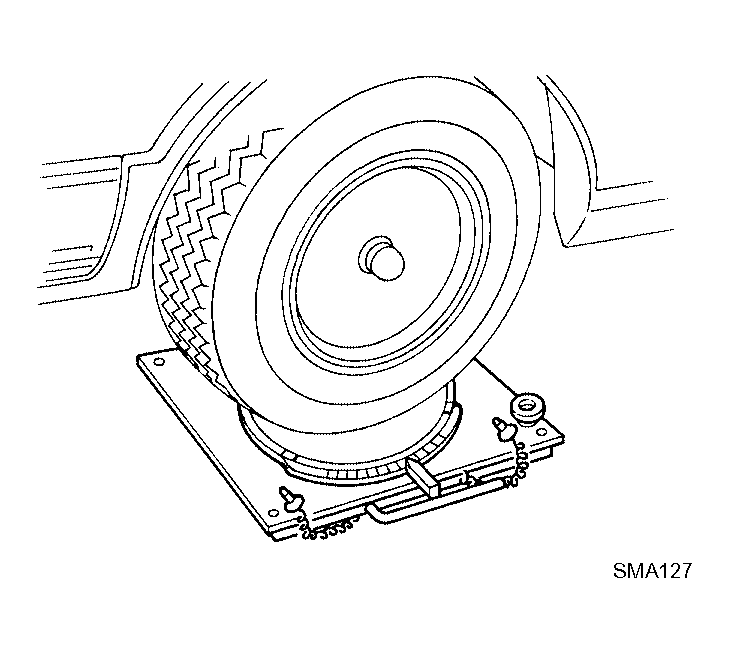

    Fig 1: Rotating Front Wheel Turning Angle
    G04169899Courtesy of NISSAN MOTOR CO., U.S.A.
