Work Flow Chart

WARNING: This page is about a different variant/trim than selected.

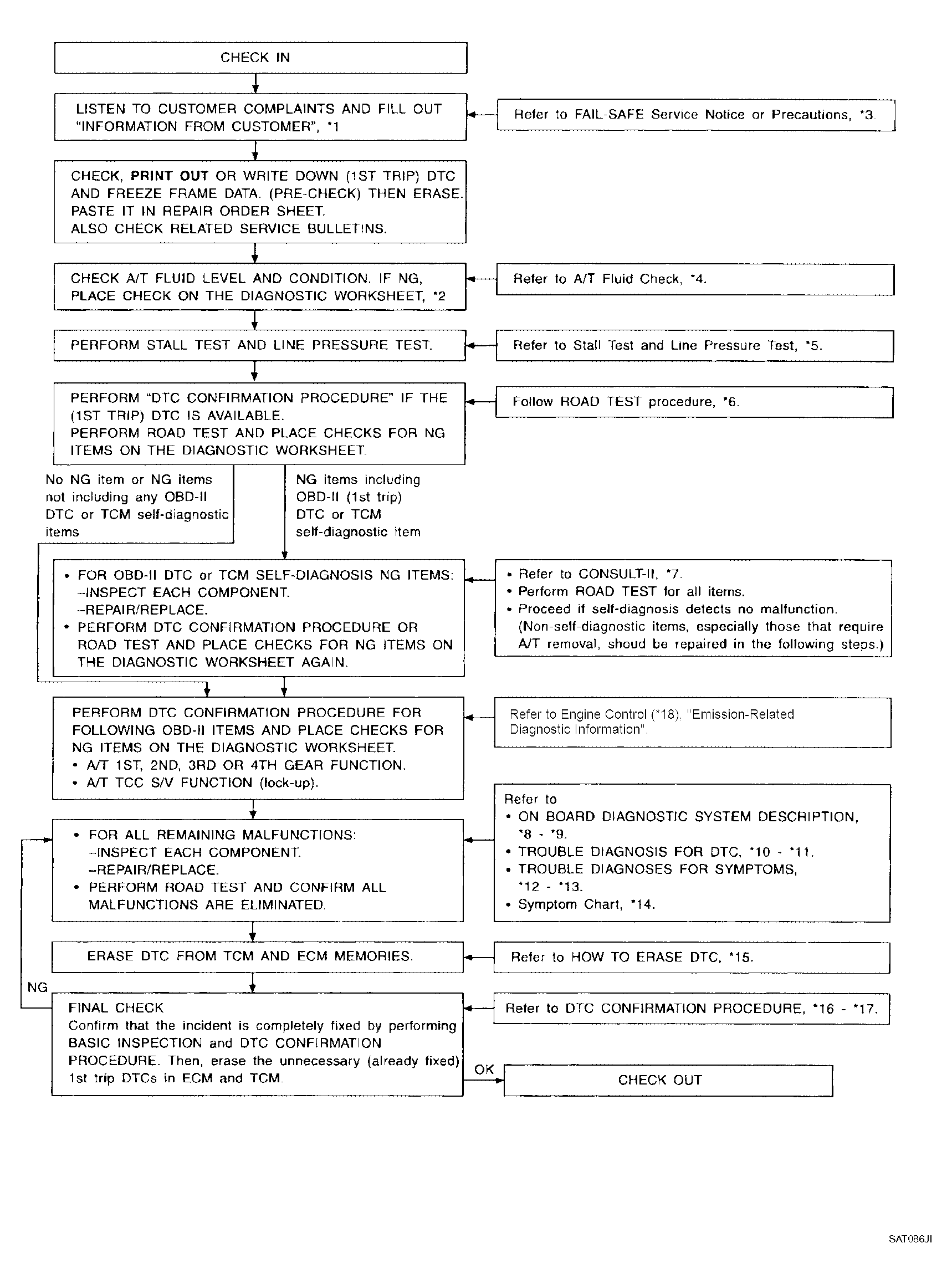

Fig 1: Work Flow Chart

G04168200

Courtesy of NISSAN MOTOR CO., U.S.A.

*1: Information from Customer

*2: Diagnostic Worksheet

*3: Service Notice or Precautions

*4: A/T Fluid Check

*5: Stall Test , Line Pressure Test

*7: CONSULT-II Function (TCM)

*8: ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

*9: ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

*10: DTC P0705 PARK/NEUTRAL POSITION SWITCH

*11: DTC CONTROL UNIT (EEP ROM)

*12: TROUBLE DIAGNOSIS FOR SYMPTOMS

*13: 20. Vehicle Does Not Decelerate By Engine Brake

*14: Symptom Chart

*15: HOW TO ERASE DTC

*16: DTC P0705 PARK/NEUTRAL POSITION SWITCH

*17: DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER SOURCE)

*18: ENGINE CONTROL SYSTEM (QR25DE) , ENGINE CONTROL SYSTEM (VQ35DE) - DTC INDEX, PRECAUTIONS & PREPARATION, SYSTEM DESCRIPTION, BASIC SERVICE PROCEDURE, TROUBLE DIAGNOSIS, POWER SUPPLY AND GROUND CIRCUIT
