CONSULT-II Setting Procedure

WARNING: This page is about a different variant/trim than selected.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in left side dash panel.

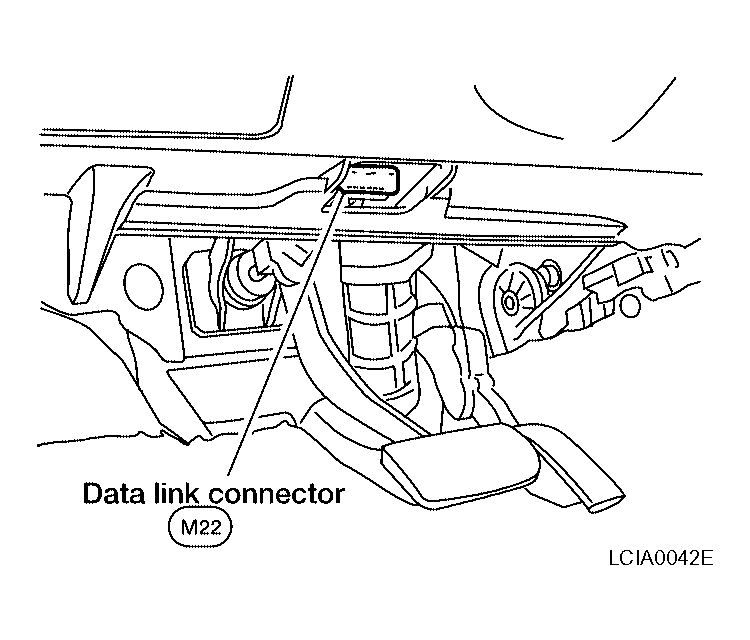

    Fig 1: Locating Data Link Connector
    G04168155Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON. (Do not start engine)
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Consult-II Display Screen
    G04151184Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "A/T".

    If "AT" is not indicated, go to , "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

    Fig 3: Consult-II SELECT SYSTEM Display Screen
    G04083859Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DTC WORK SUPPORT".
    Fig 4: Consult-II SELECT DIAG MODE Display Screen
    G04083861Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch select item menu (1ST, 2ND, etc.).
    Fig 5: CONSULT-II Display - 1ST, 2ND
    G04168159Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch "START".
    Fig 6: CONSULT-II Display - START
    G04168160Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".
    Fig 7: CONSULT-II Display - TROUBLE DIAGNOSIS FOR DTC
    G04168161Courtesy of NISSAN MOTOR CO., U.S.A.
    • When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING"  .
      Fig 8: CONSULT-II Display - TESTING
      G04168162Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".
    Fig 9: CONSULT-II Display - STOP VEHICLE
    G04168163Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 10: CONSULT-II Display - NG
    G04168164Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Perform test drive to check gear shift feeling in accordance with instructions displayed.
    Fig 11: CONSULT-II Display - 1ST GR FNCTN P0731
    G04168165Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Touch "YES" or "NO".
    Fig 12: CONSULT-II Display - 1ST GR FNCTN P0731
    G04168166Courtesy of NISSAN MOTOR CO., U.S.A.
  13. CONSULT-II procedure ended.
    Fig 13: CONSULT-II Display - 1ST GR FNCTN P0731
    G04168167Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 14: CONSULT-II Display - 1ST GR FNCTN P0731
    G04168168Courtesy of NISSAN MOTOR CO., U.S.A.

    If "NG" appears on the screen, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".
