CONSULT-II Setting Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT II CONVERTER to data link connector, which is located in left side dash panel.

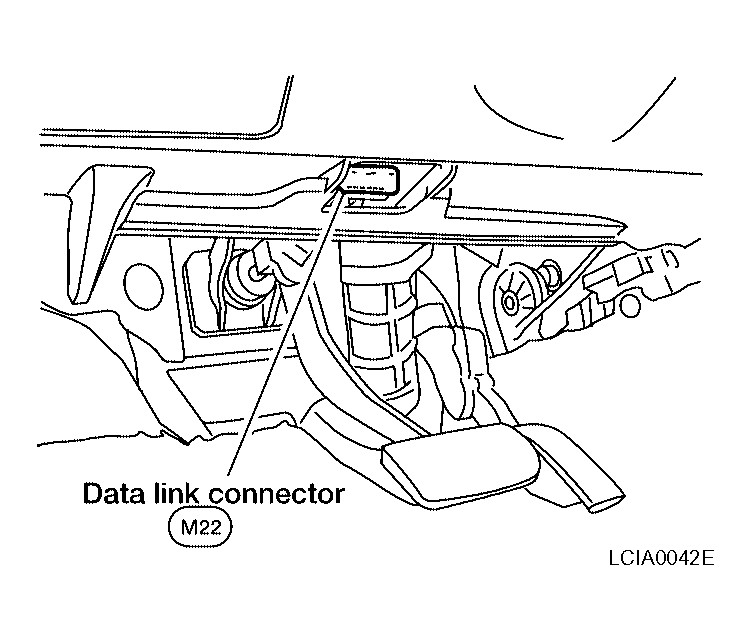

    Fig 1: Locating Data Link Connector
    G04168169Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON. (Do not start engine.)
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Consult-II Display Screen
    G04151184Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "A/T".

    If "AT" is not indicated, go to , "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

    Fig 3: Consult-II SELECT SYSTEM Display Screen
    G04083859Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "CAN DIAGNOSTIC SUPPORT MONITOR".

    Refer to , "CAN DIAGNOSTIC SUPPORT MONITOR ".

    Fig 4: Consult-II SELECT DIAG MODE Display Screen
    G04083861Courtesy of NISSAN MOTOR CO., U.S.A.
