Removal and Installation of Display Control Unit

WARNING: This page is about a different car, the 2005 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove lower driver instrument panel. Refer to "INSTRUMENT LOWER COVER LH ".
  3. Remove daytime light control unit (Canada models only).
  4. Remove the screws and lower the display control unit.
  5. Disconnect connectors and remove display control unit.
  6. Installation is in reverse order of removal.

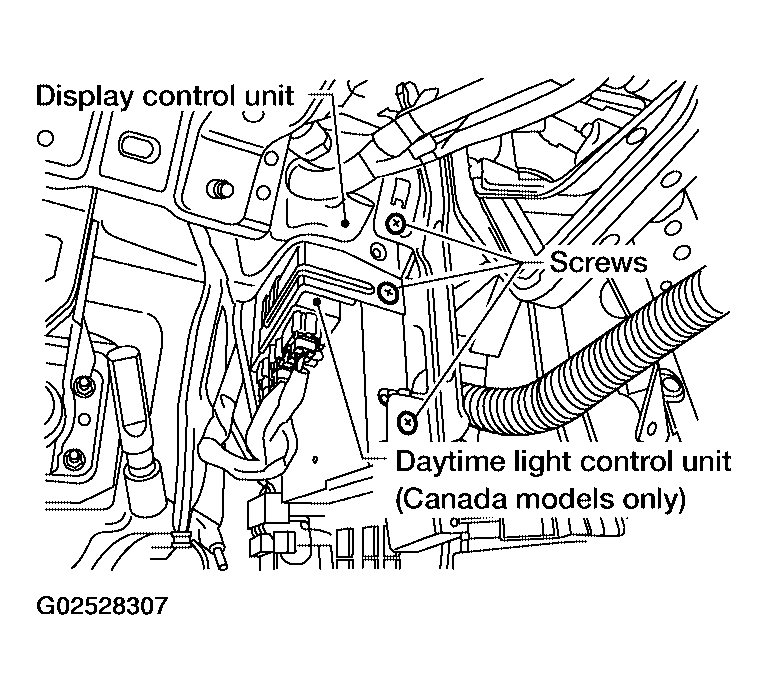

    Fig 1: Removing Screws And Lower Display Control Unit
    G02528307Courtesy of NISSAN MOTOR CO., U.S.A.
