Wiring Diagram-AT/IND-4-SPEED A/T: Notes

WARNING: This page is about a different car, the 2005 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

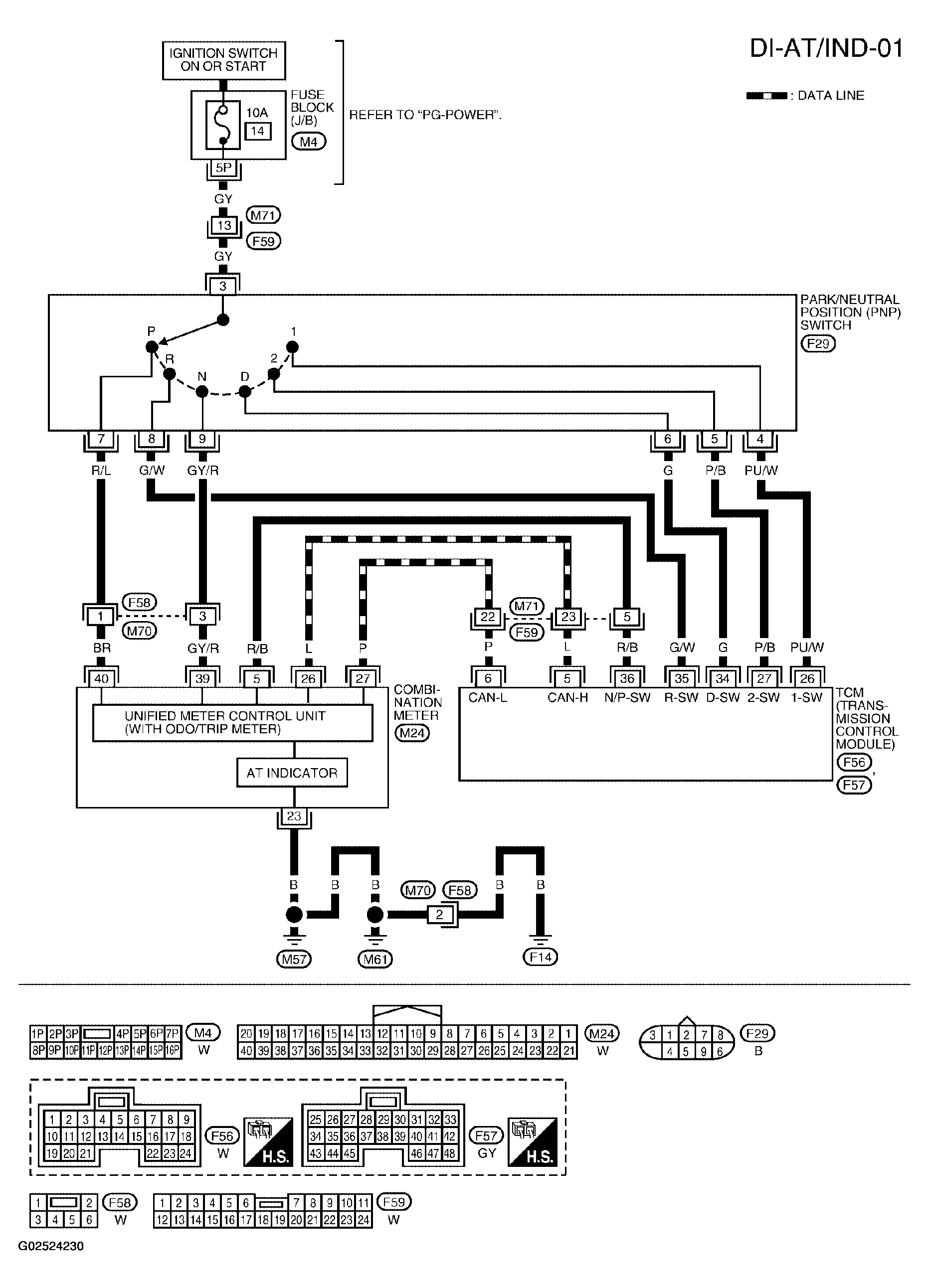

Fig 1: Wiring Diagram-AT/IND-4-SPEED A/T (DI-AT/IND-01)
G02524230Courtesy of NISSAN MOTOR CO., U.S.A.
