Engine Control System - Introduction (VQ35DE)
>>
Trouble Diagnosis - Specification Value
>>
Diagnostic Procedure
>>
Overall Sequence
Overall Sequence

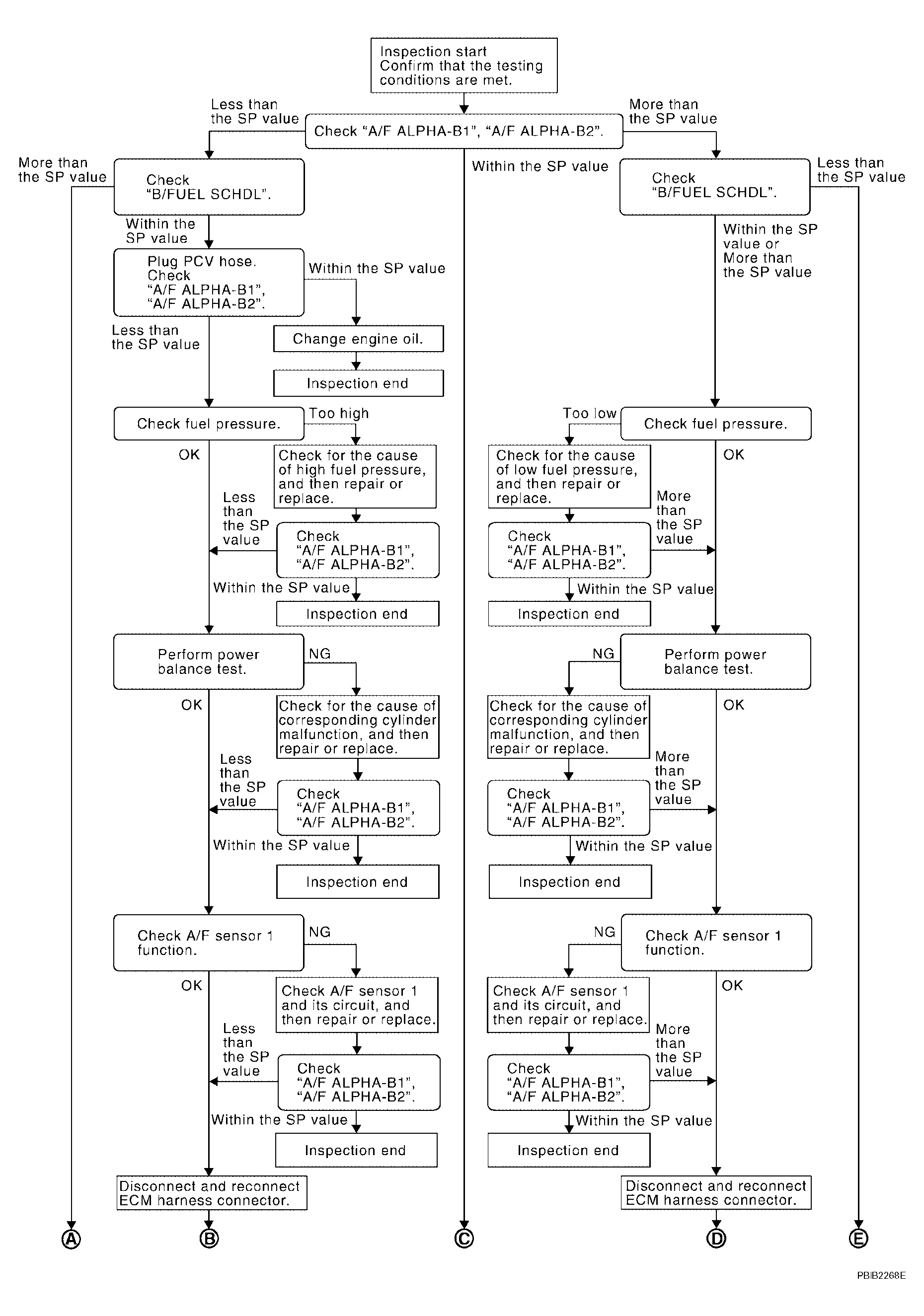

Fig 1: Diagnostic Procedure - Overall Sequence (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

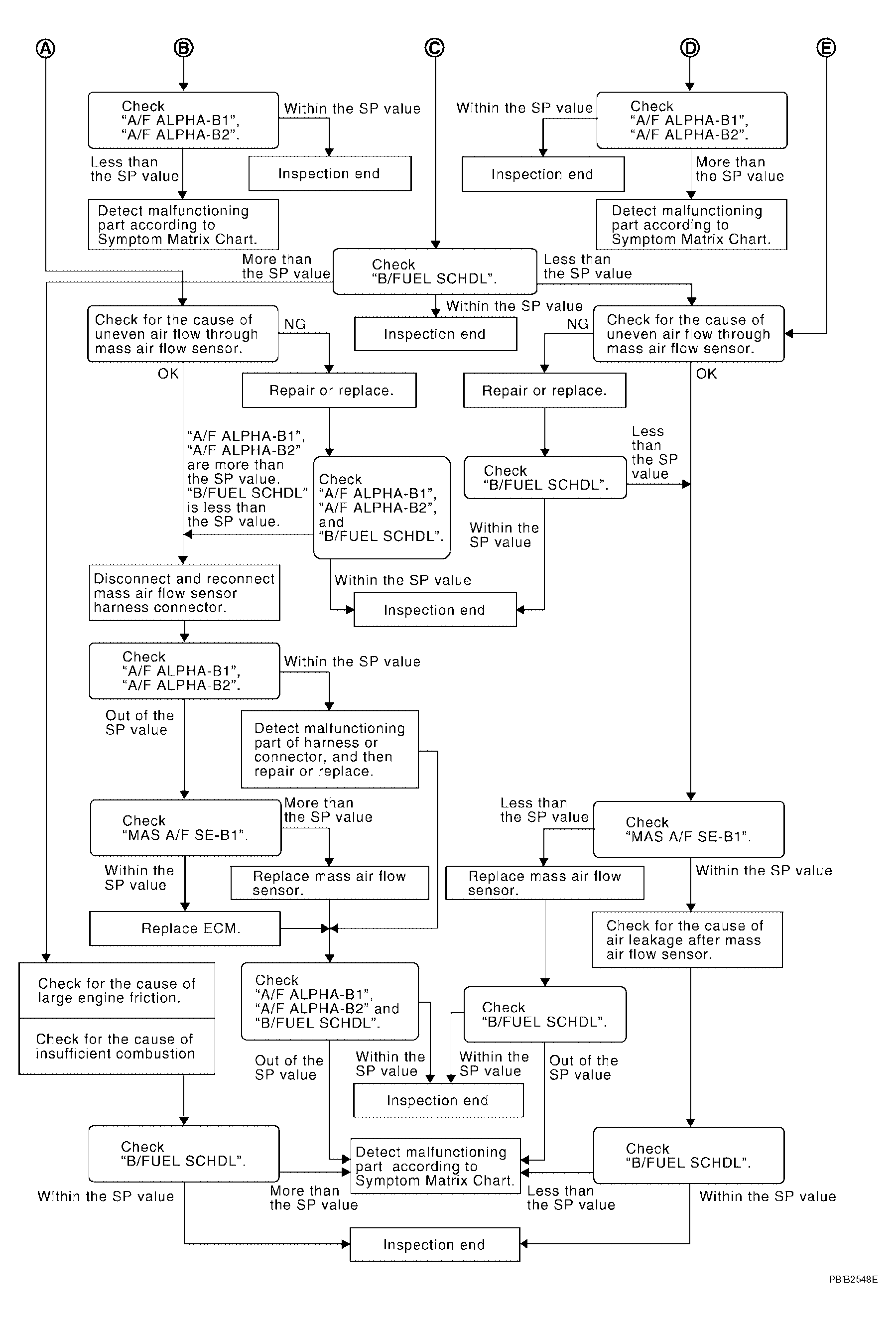

Fig 2: Diagnostic Procedure - Overall Sequence (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
