Guide Sound is Not Heard

CHECK VOICE GUIDE SETTING
NOTE: Voice guide is only available at intersections that satisfy certain conditions (indicated by on the map). Therefore, guidance may not be given even when the route on the map changes direction.
- While driving in the dark pink route, voice guide does not operate.
- Is volume setting not switched ON?
Yes or No

Yes: GO TO 2.

No: Switch the setting ON and turn the volume up.

CHECK HARNESS

Turn ignition switch OFF.
Disconnect NAVI control unit connector and audio unit connector.

Check continuity between NAVI control unit and audio unit.

NAVI CONTROL UNIT AND AUDIO UNIT

Terminals				Continuity
NAVI control unit		Audio unit
Connector	Terminal	Connector	Terminal
B40	7	M45	71	Yes
B40	8	M45	69	Yes

Check continuity between NAVI control unit and ground.

NAVI CONTROL UNIT AND GROUND

Terminals			Continuity
NAVI control unit		-
Connector	Terminal	-
B40	7	Ground	No
B40	8	Ground	No

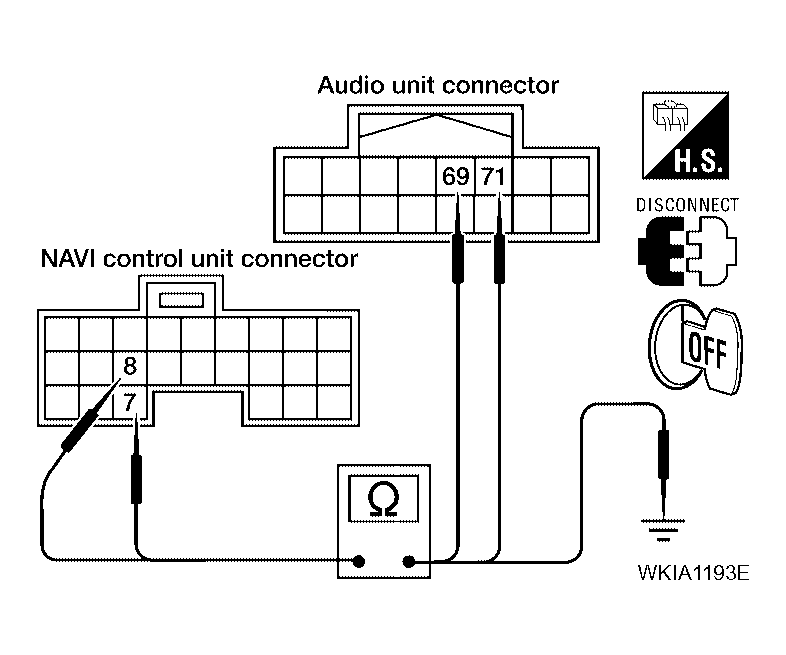

Fig 1: Checking Continuity Between NAVI Control Unit & Audio Unit And NAVI Control Unit & Ground

G04171752

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 3.

NG: Repair harness.

CHECK VOICE GUIDE
1. Connect NAVI control unit connector and audio unit connector.
2. Turn ignition switch ON.
3. Check signal between NAVI control unit harness connector B40 terminal 7 and 8 with CONSULT-II or oscilloscope.
  7 - 8: Refer to TERMINALS AND REFERENCE VALUE FOR NAVI CONTROL UNIT .
Fig 2: Checking Signal Between NAVI Control Unit Harness Connector B40 Terminal 7 And 8
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace audio unit. Refer to AUDIO UNIT .

NG: Replace NAVI control unit. Refer to NAVI CONTROL UNIT .
