Consult-II Reference Value In Data Monitor Mode

Remarks: Specification data are reference values.

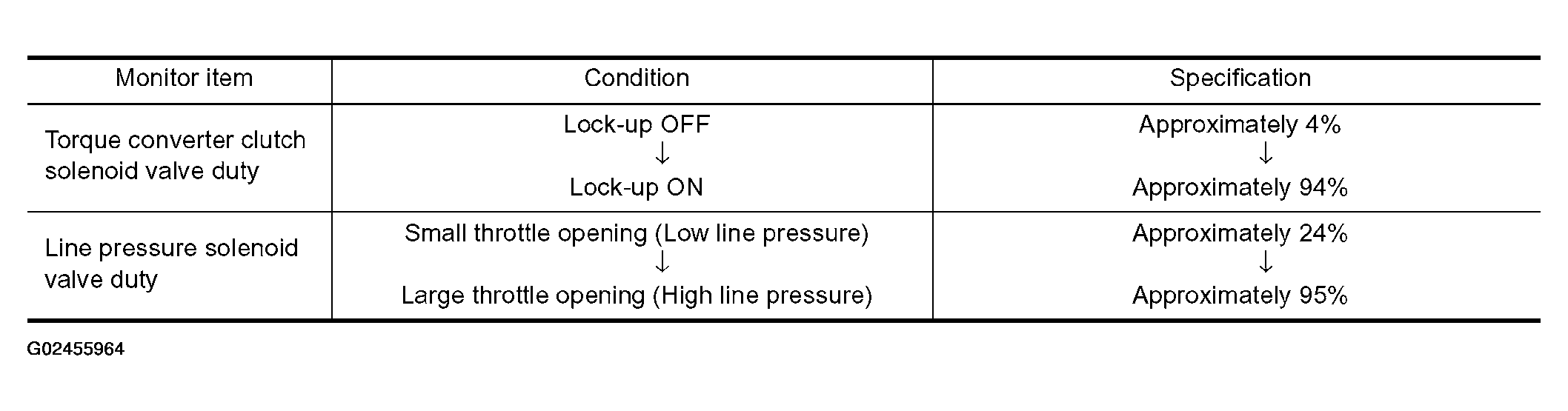

Fig 1: CONSULT-II Reference Value In Data Monitor Mode Chart

G02455964

Courtesy of NISSAN MOTOR CO., U.S.A.
