CONSULT-II Setting Procedure: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn ignition switch ON.

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

Fig 2: Identifying CONSULT-II Touch "START (NISSAN BASED VHCL)"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "A/T".

Fig 3: Identifying CONSULT-II Touch "A/T"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DATA MONITOR".

Fig 4: Identifying CONSULT-II Touch "DATA MONITOR"
Courtesy of NISSAN MOTOR CO., U.S.A.

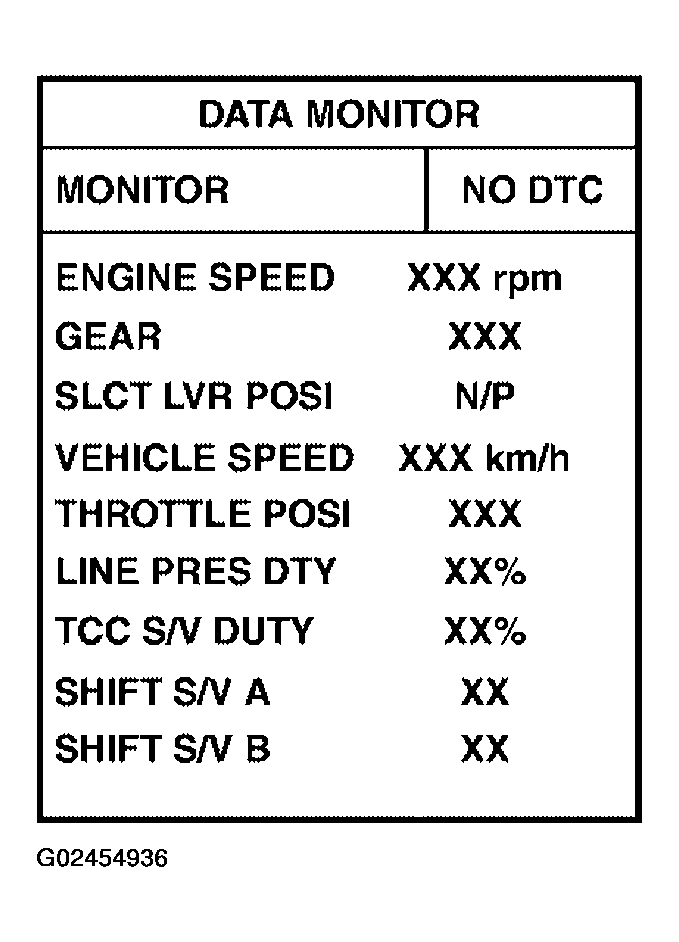

Touch "MAIN SIGNALS" or "TCM INPUT SIGNALS".
See Numerical Display, Barchart Display, or Line Graph Display.

Fig 5: Identifying CONSULT-II Touch "MAIN SIGNALS" Or "TCM INPUT SIGNALS"
Courtesy of NISSAN MOTOR CO., U.S.A.

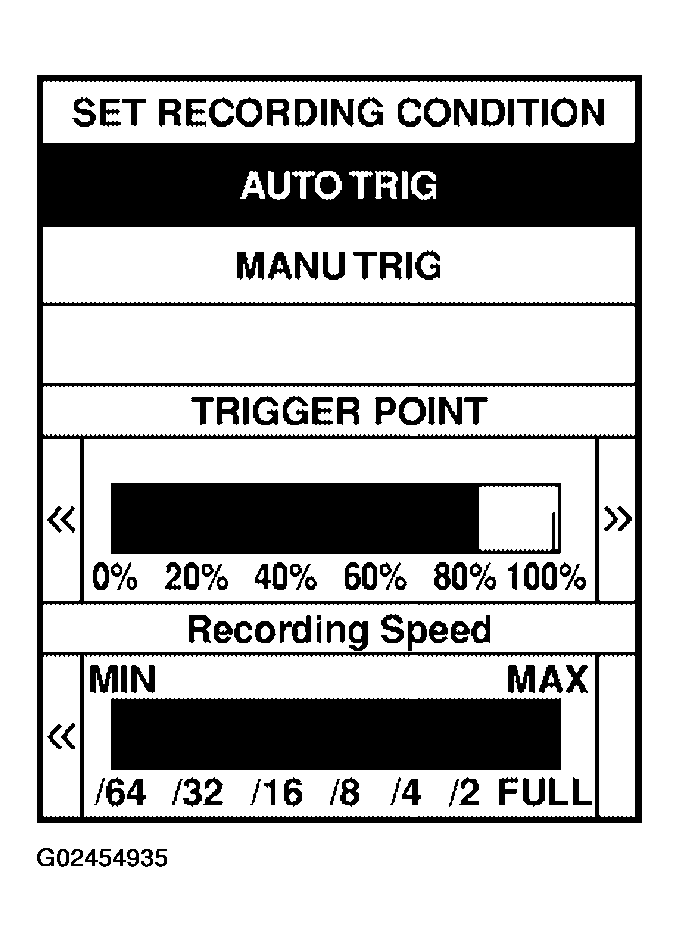

Touch "SETTING" to recording condition ("AUTO TRIG" or "MANU TRIG") and touch "BACK".
Touch "START".

Fig 6: Identifying CONSULT-II Touch "START"
Courtesy of NISSAN MOTOR CO., U.S.A.
When performing cruise test, touch "RECORD".

Fig 7: Identifying CONSULT-II Cruise Test Touch "RECORD"
Courtesy of NISSAN MOTOR CO., U.S.A.
After finishing cruise test part 1, touch "STOP".

Fig 8: Identifying CONSULT-II Touch "STOP"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "STORE" and touch "BACK".

Fig 9: Identifying CONSULT-II Touch "STORE" & Touch "BACK"
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying CONSULT-II Store
Courtesy of NISSAN MOTOR CO., U.S.A.

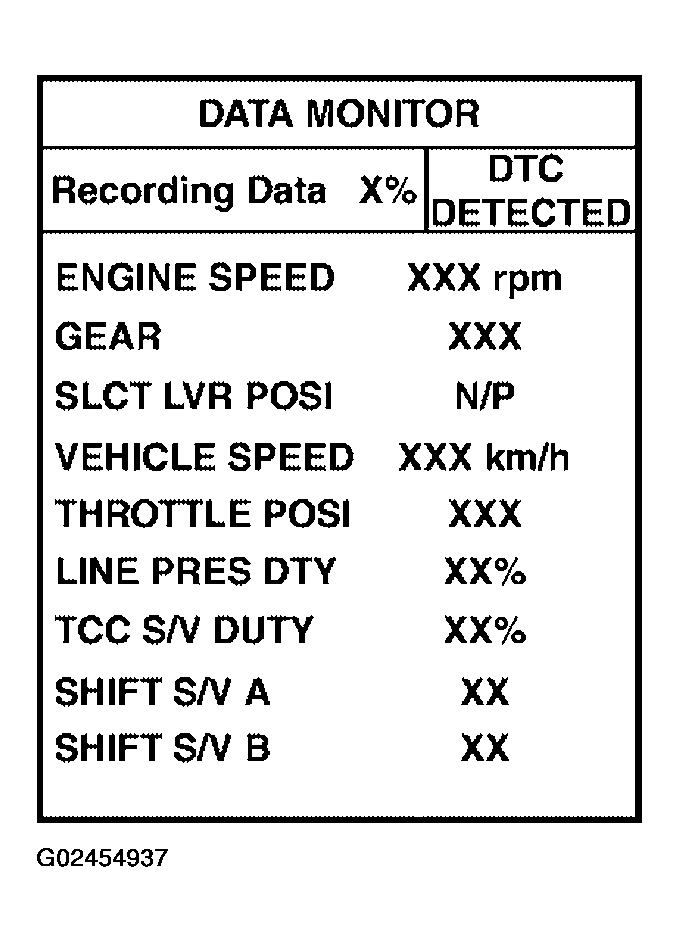

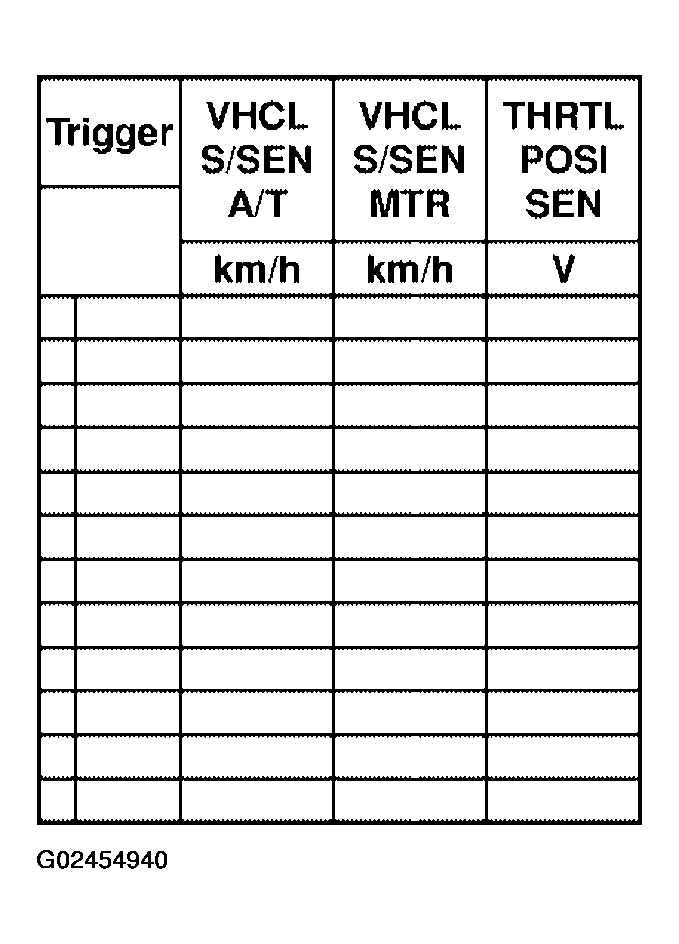

Touch "DISPLAY".
Touch "PRINT".
Check the monitor data printed out.
Continue cruise test part 2 and 3.
