Diagnostic Trouble Codes Confirmation Procedure

WARNING: This page is about a different variant/trim than selected.

CAUTION: Always drive vehicle at a safe speed.

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

TESTING CONDITION:

Step 3 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle.

WITH CONSULT-II

Start engine.
Select "DATA MONITOR" mode with CONSULT-II.

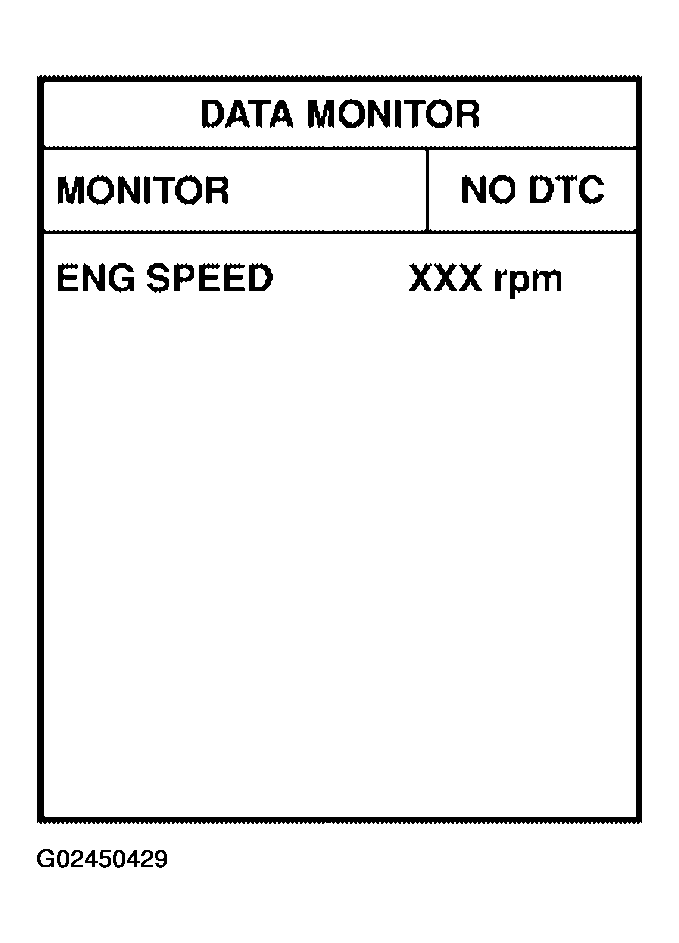

Fig 1: CONSULT-II Display - DATA MONITOR, ENG SPEED
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive the vehicle at more than 30 km/h (19 MPH).
If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

WITH GST

Follow the procedure "WITH CONSULT-II" above.
