DTC P0122, P0123: TP Sensor: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

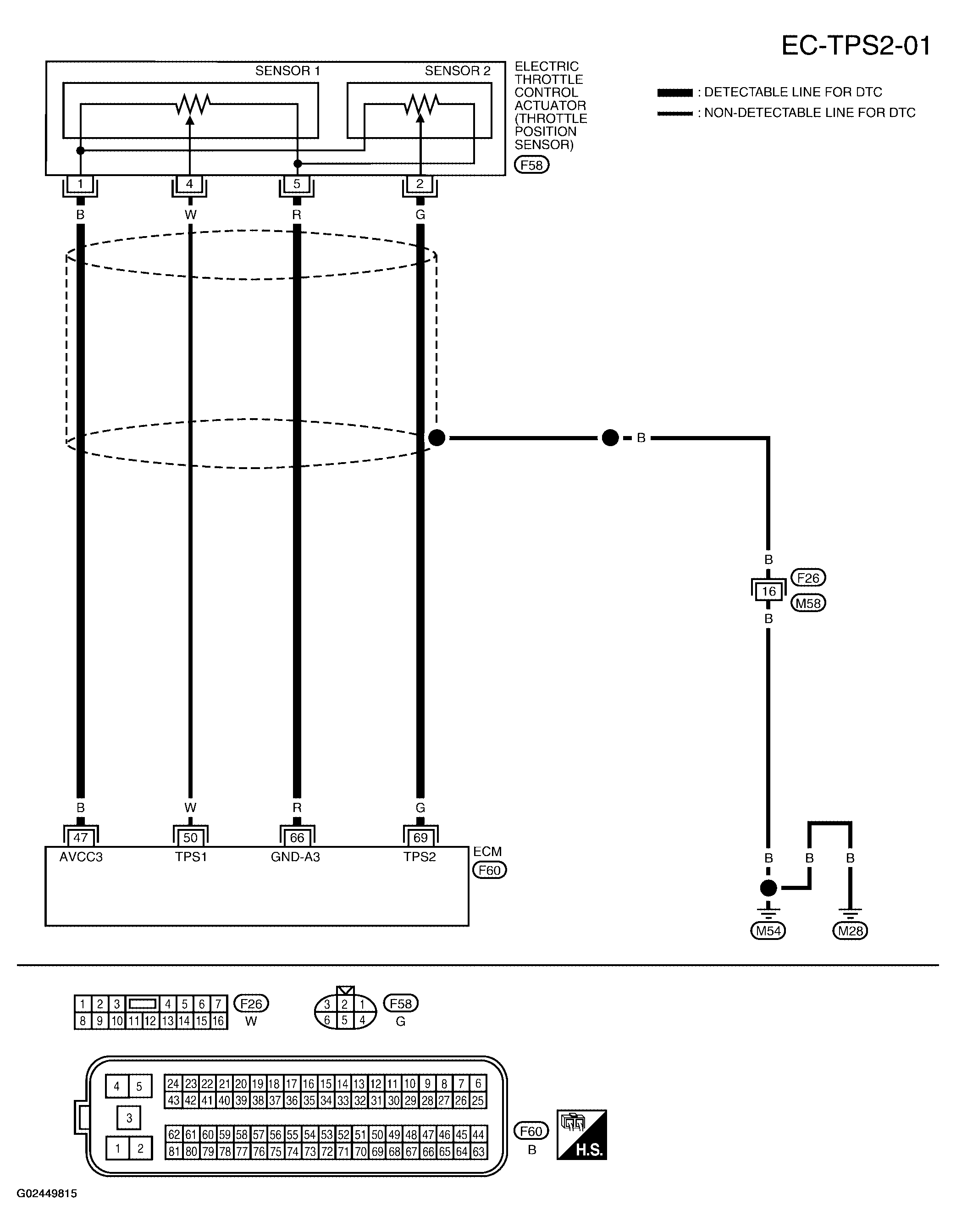

Fig 1: Wiring Diagram - Throttle Position Sensors (EC-TPS2-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

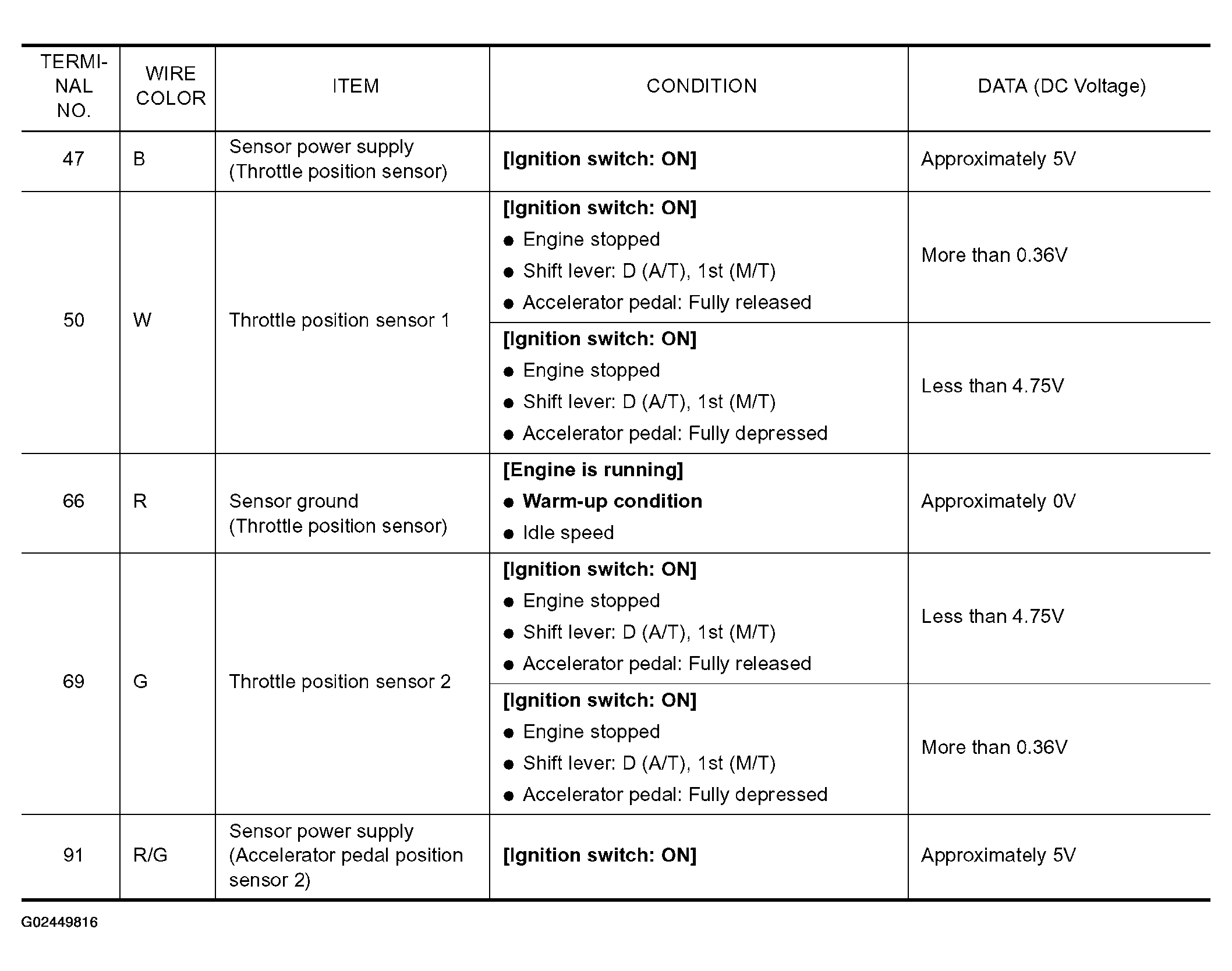

Fig 2: ECM Terminal Value Chart - Throttle Position Sensors Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
